Serial port Configure Modem emulator mode
IX20 User Guide
289
b. Click the Device ID.
c. Click Settings.
d. Click to expand Config.
Local Web UI:

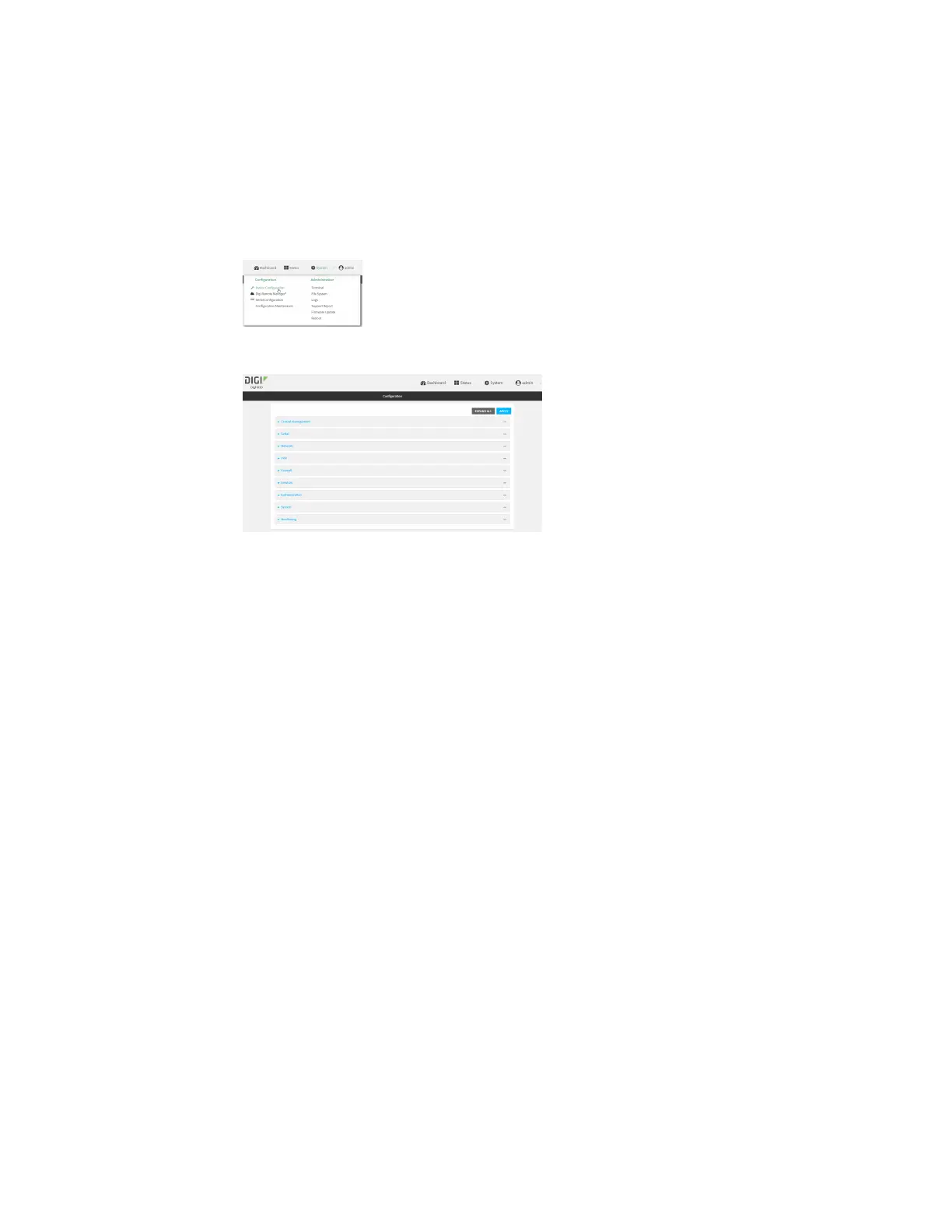

a. On the menu, click System. Under Configuration, click Device Configuration.
The Configuration window is displayed.
3. Click to expand the name of the port that you want to configure, for example, Port 1.
The serial port is enabled by default. To disable, toggle off Enable.
4. For Mode, select Modem emulator. Thedefault is Remote.
5. (Optional) For Label, enter a label that will be used when referring to this port.
6. For Baud rate, select the baud rate used by the device to which you want to connect. The
default is9600.
7. For Data bits, select the number of data bitsused by the device to which you want to connect.
The default is 8.
8. For Parity, select the type of parity used by the device to which you want to connect. The
default isNone.
9. For Stop bits, select the number of stop bits used by the device to which you want to connect.
The default is 1
10. For Flow control, select the type of flow control used by the device to which you want to
connect. The default is None.
11. For Idle timeout, typethe amount of time that the active session can be idle before the
session is disconnected.
Allowed values are any number of weeks, days, hours, minutes, or seconds, and take the
format number{w|d|h|m|s}.
For example, to set Idle timeout to ten minutes, enter 10m or 600s.
12. For Escape character, type the character to use in the escape sequence. Enter this character
three times, followed by the escape delay and then an AT command to switch from data mode
to command mode. The default is the plussign (+).
To Next Page
