Enabling/Disabling GVRP (GARP VLAN Registration Protocol)
7-20 802.1Q VLAN Configuration

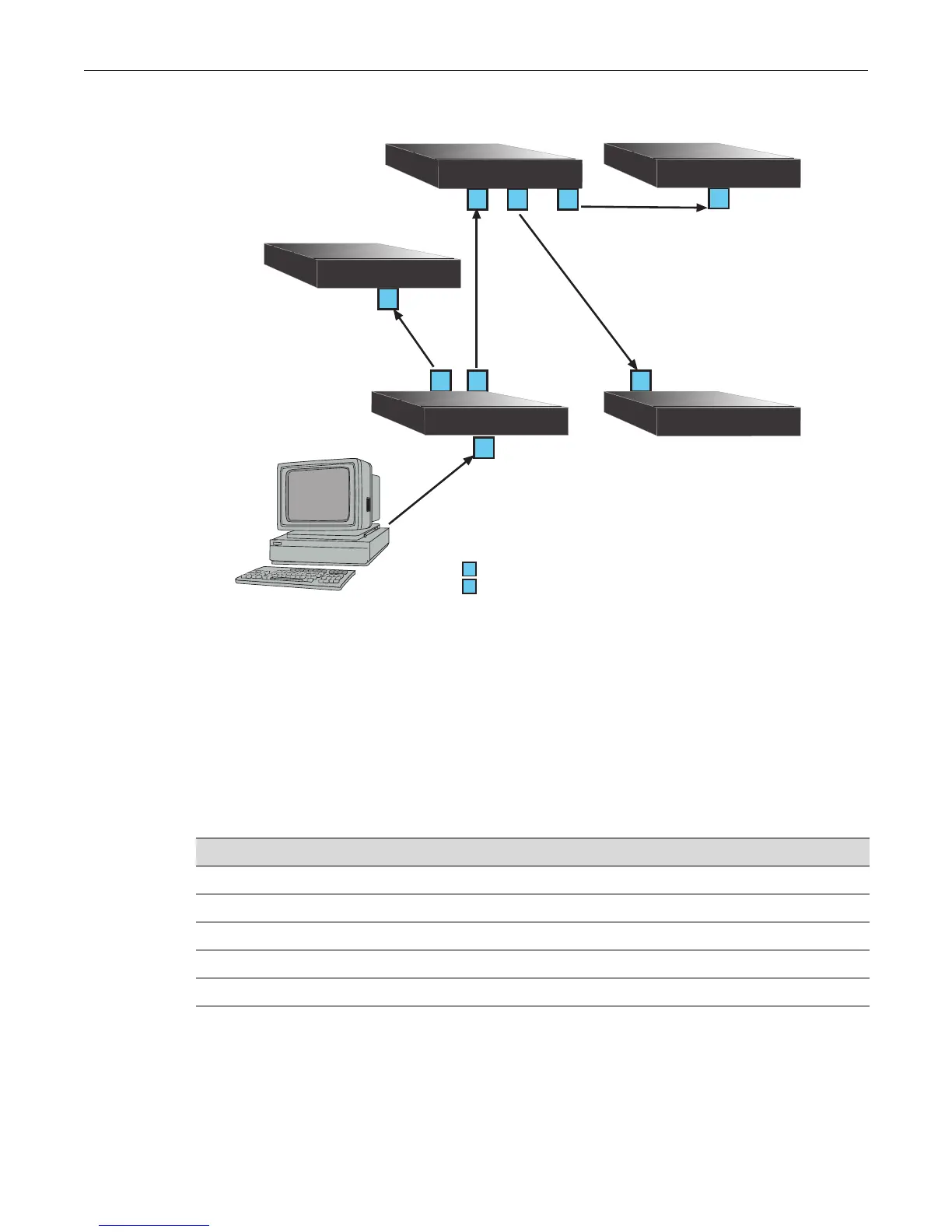

Figure 7-7 Example of VLAN Propagation via GVRP
Purpose
TodynamicallycreateVLANsacrossaswitchednetwork.TheGVRPcommandsetisusedto
displayGVRPconfigurationinformation,thecurrentglobalGVRPstatesetting,individualport
settings(enableordisable)andtimersettings.Bydefault,GVRPisenabledgloballyonthedevice,
butdisabledonallports.
Commands
End
Station A
Switch 4
Switch 5
= Port registered as a member of VLAN Blue
= Port declaring VLAN Blue
D
R
1
1
2
3
D
R
D
Switch 1
1
R
R
3
Switch 2
12
D
R
D
Switch 3
1
R
For information about... Refer to page...
show gvrp 7-21
show garp timer 7-21
set gvrp 7-22
clear gvrp 7-23
set garp timer 7-23
