HEADER ATTAC HMENT/D ETACH ME NT
7. Remove 9/16 in. nut from bo lt (C).
8. Rotate latch (A) down with a 15/ 16 in. (24 mm) wrench
on hex (B) to raise feed deck slightly so that bolt (C)
can be removed.
9. Rotate latch (A) up and back to lower adapter deck and
disengage transition pan tube (D).
10. Reinstall bolt (C).
11. Repeat for other side of the feed draper deck.
12. Disengage reel safety props, start engine, lower reel
and raise header fully. Stop engine, remove key, and
engage combine lift saf ety props.

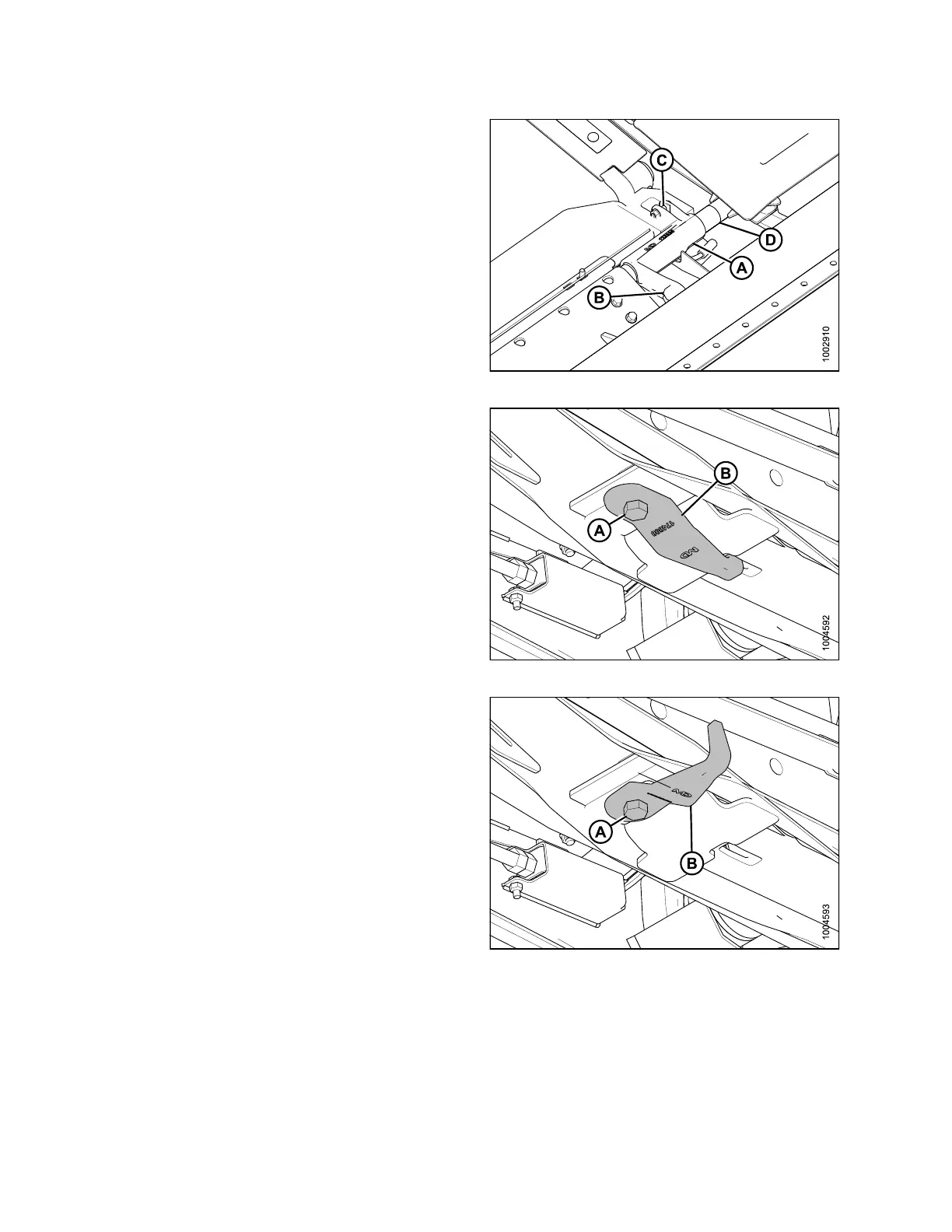

Figure 4.102: Adapter Latch
13. Loosen nut and bolt (A), and disengage hook (B) from
leg on both sides of adapter.
Figure 4.103: AdapterUnderside
14. Rotate hook (B) 90° for storage, and retighten bolt (A)
and nut.
Figure 4.104: AdapterUnderside
147695
2
42
Revision A
