HEADER ATTA CHMEN T/DETACHMENT
24. Install fillers (A) at each front corner of feed deck
with two 3/8 in. x 0.75 long hex head bolts (B) at
each location.

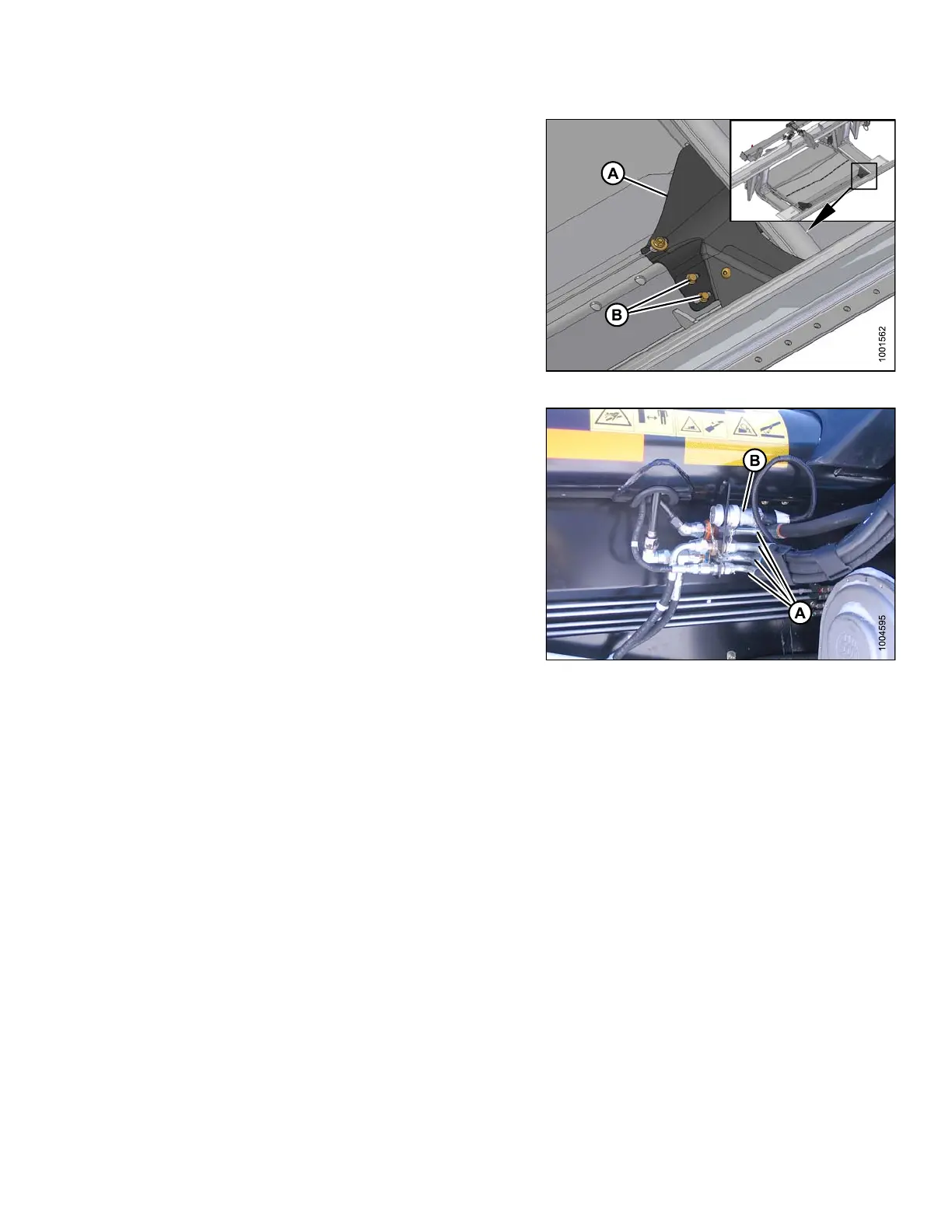

Figure 4.122: Fillers
25. Connect knife and draper drive hydraulic hoses (B)
at bracket.
26. Attach electrical connector (B).
Figure 4.123: Header Connections
