MAINTENANCE AND SERVICING

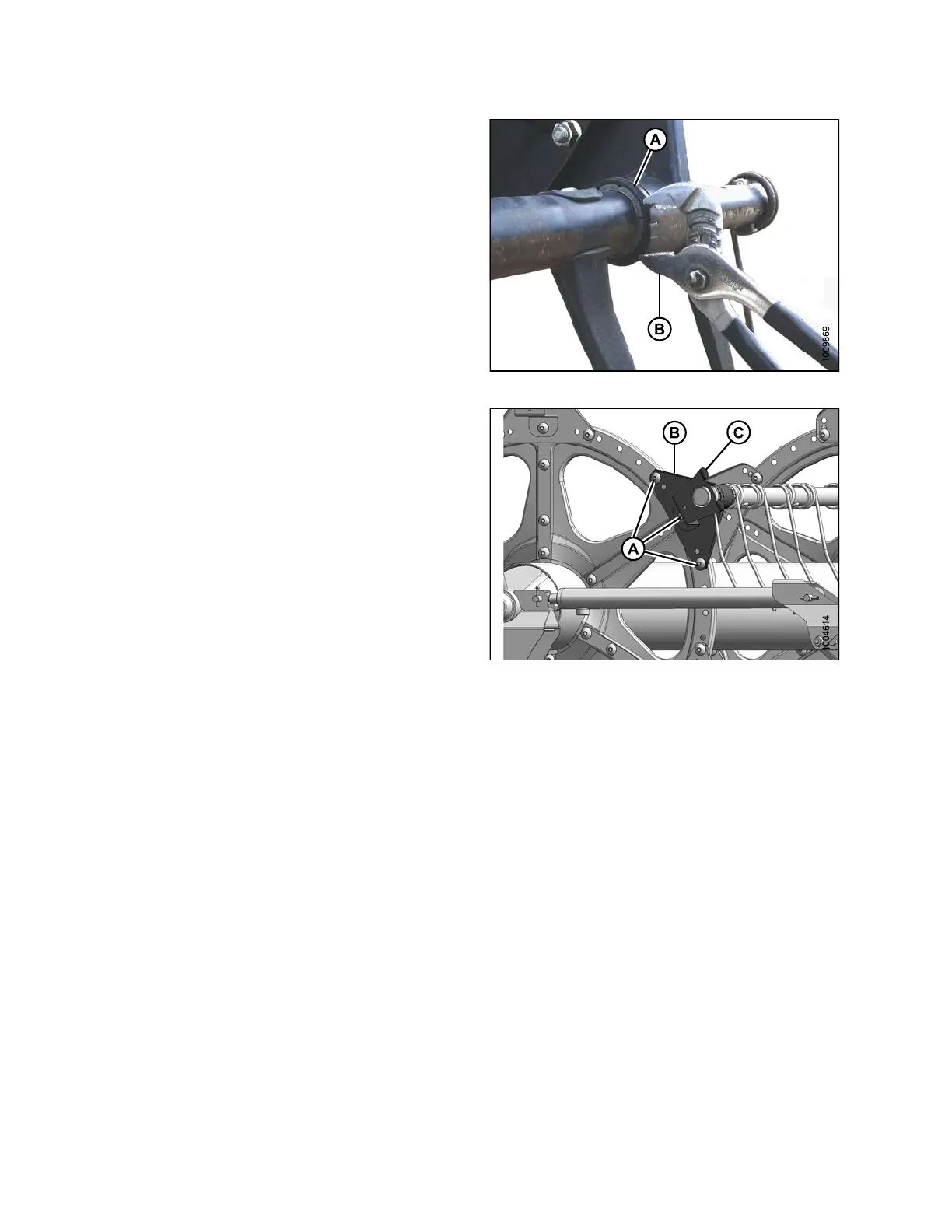

17. Tighten clamp (A) with modified channel lock pliers (B)
so that finger pressure will NOT move clamp.
IMPORTANT:
Over-tightening clamp may result in breakage.
Figure 5.228: Clamp
18. At the center dis c, install t he bolts (A) securing arm (B)
to disc.
19. At the tail end, install reel arm (B) and endshield
support (C) at applicable tine tube location with
bolts (A). Reinstall endshield s.
NOTE:
There are
no endshields on the center discs.
Figure 5.229: Tail End
147695 366 Revision A
