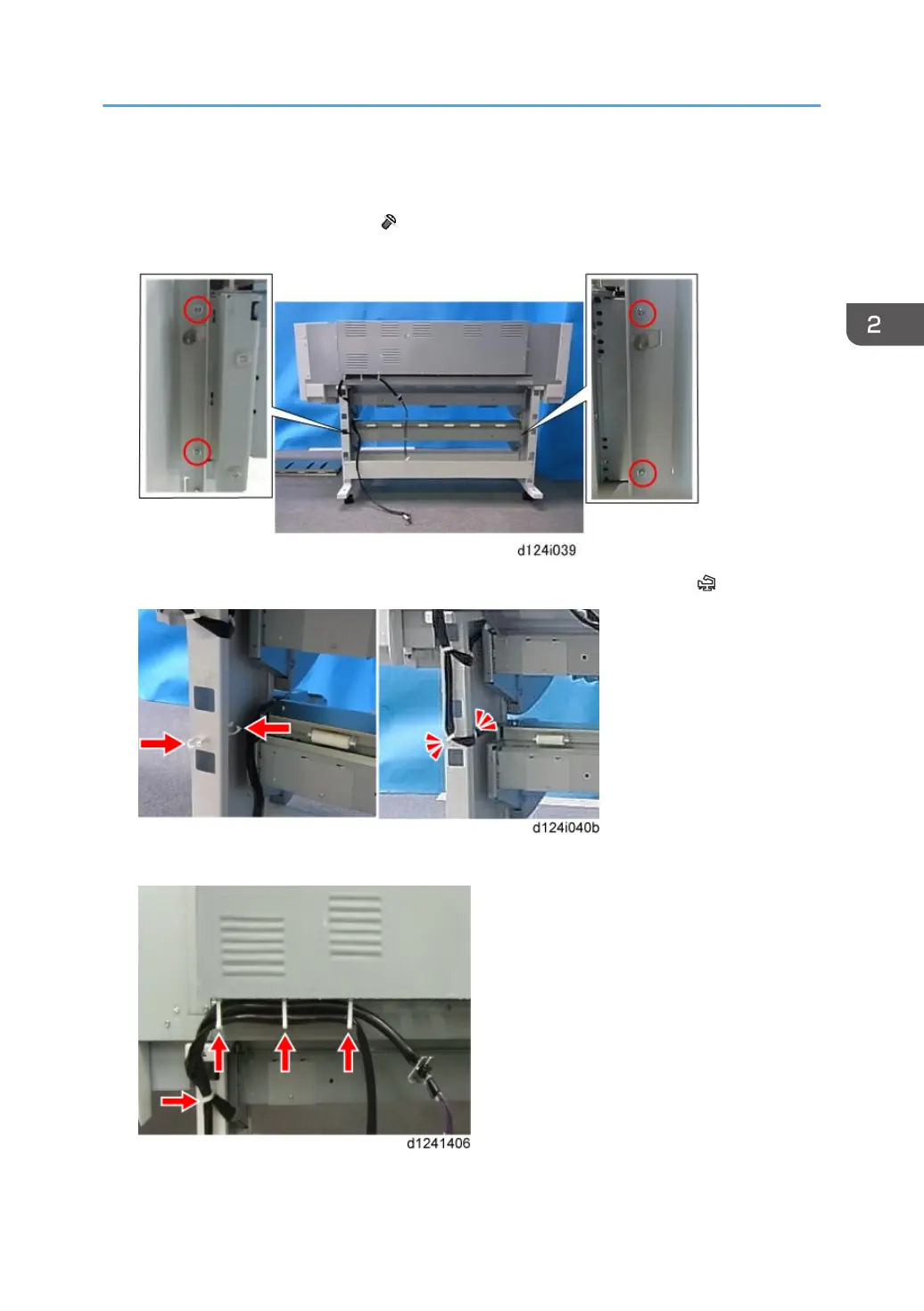

5. Insert a long screwdriver (30 cm: 12 in.) into each pair of holes to make sure that they are
aligned.
6. Fasten the roll unit to the stand ( x4 M3x8 with washer). Be sure to use the screws with
the washers attached.
7. Attach the harness clamps and then close the clamps around the harness ( x2).
8. Fasten the harness with the same clamps as for Roll Unit 1.
Main Machine Installation
95
