Ricoh MP CW2201 Service Manual

Precaution

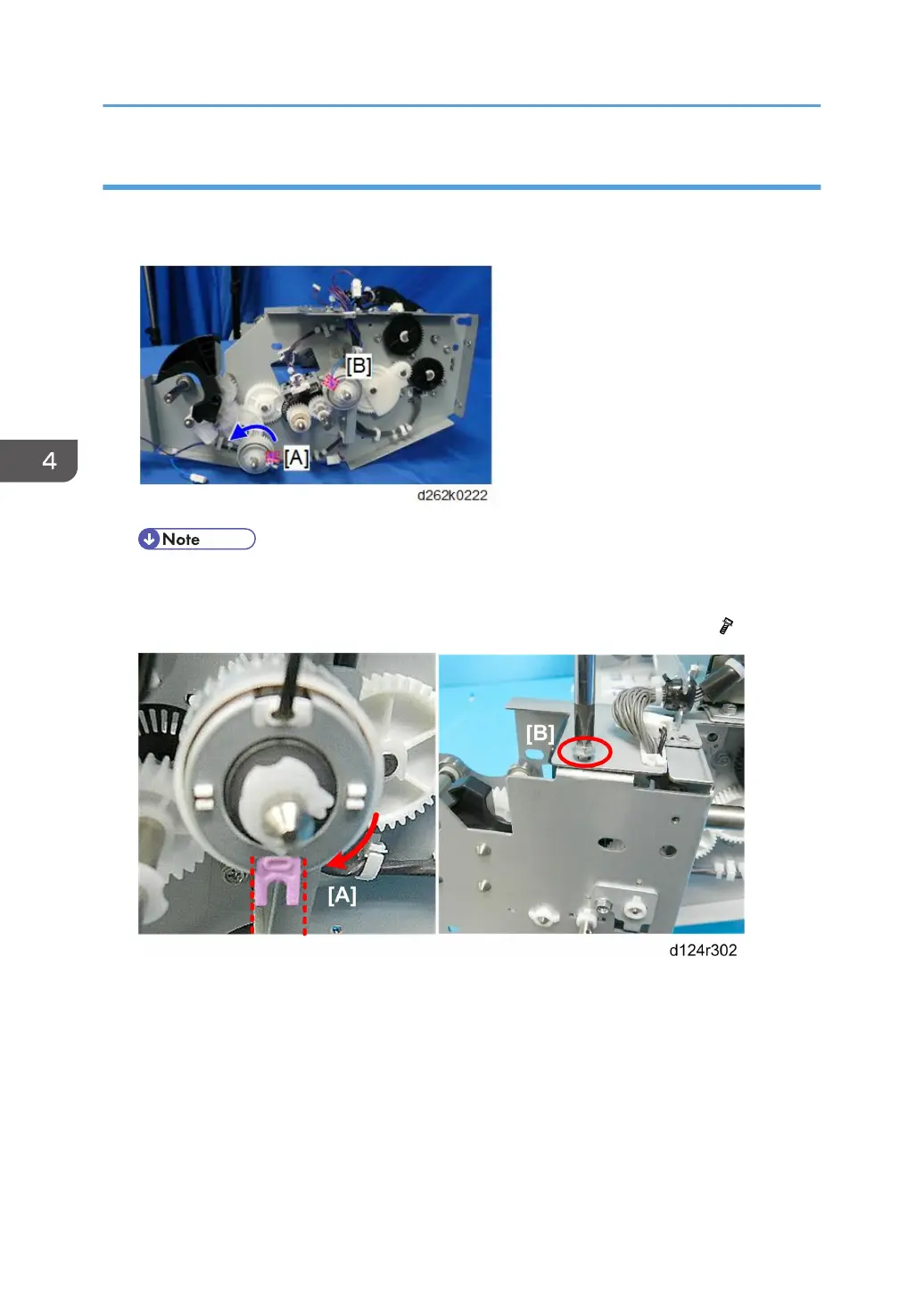

1. Rotate the roll paper feed clutch so that the clutch arms [A] and [B] are placed as shown
below.
• Because the shaft of the roll paper feed clutch is D-shaped, insert the shaft into the hole in the
gear carefully.
2. Rotate the clutch so that the clutch arm [A] is vertical. Attach the bracket [B] ( x1).
4. Replacement and Adjustment
340

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
