Ricoh MP CW2201 Service Manual

Detailed Description of Paper Feed Sequence

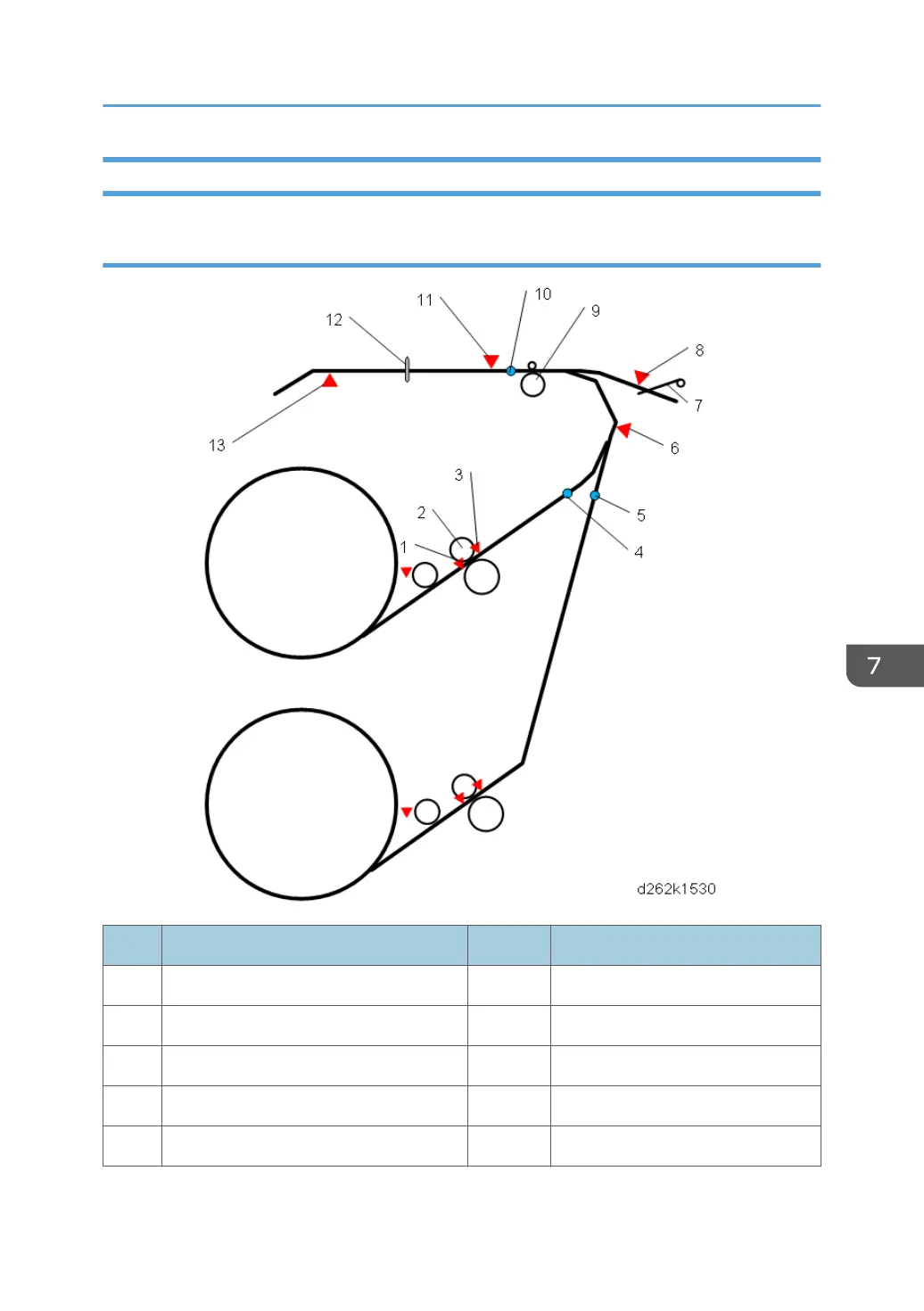

Paper Feed Layout
No. Item No. Item
1 Paper entrance sensor 8 Bypass sensor
2 Paper feed roller 9 Registration roller
3 Paper exit sensor 10 Registration standby position
4 Paper standby position (RU 1) 11 DRESS sensor
5 Paper standby position (RU 2) 12 Cutter
Paper Feed and Exit
819
