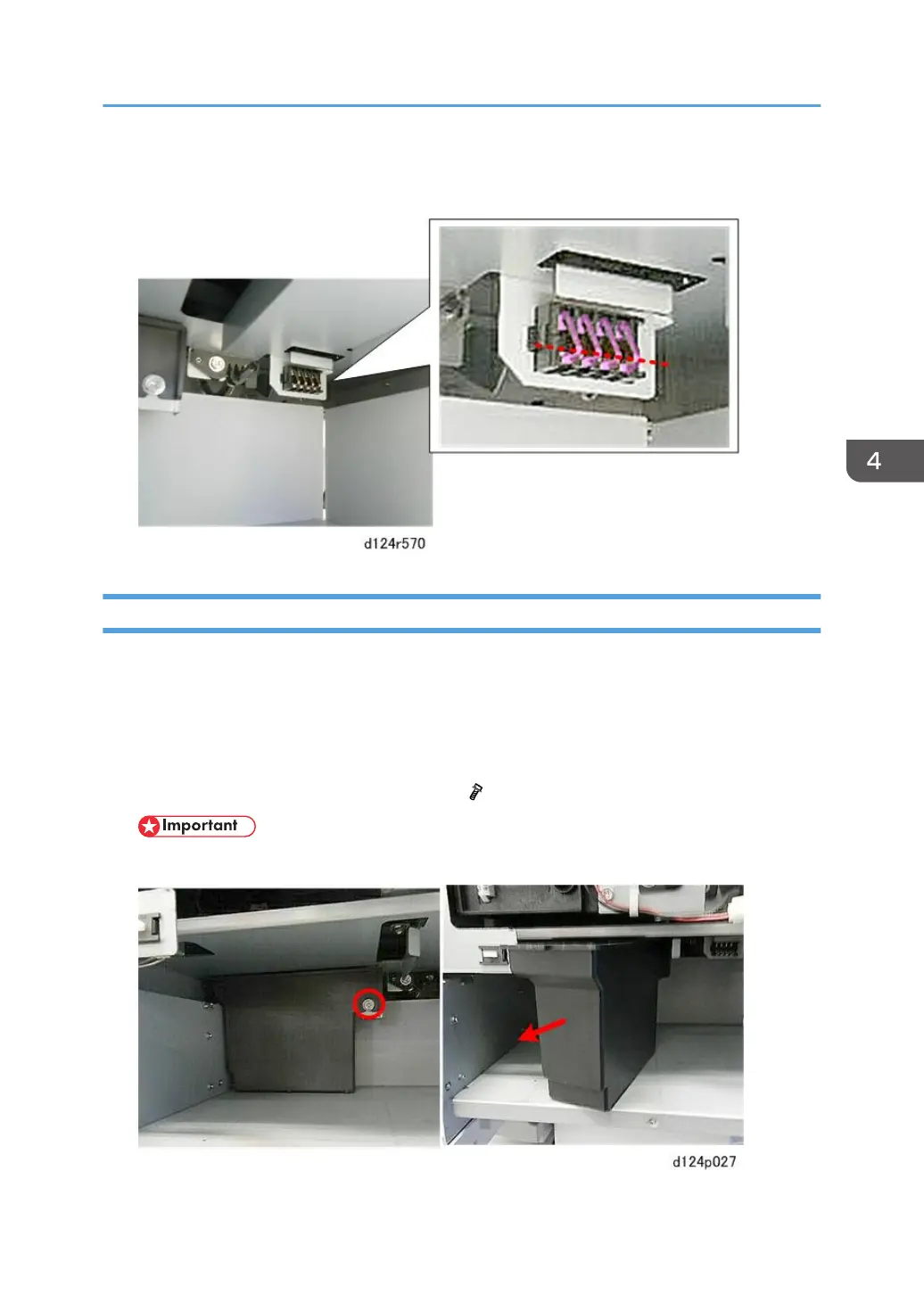

1. When you position the sensor for reinstallation, make sure that the sensor is positioned so
the bend in the tines is down.
Right Ink Sump
The service life of the right ink sump is about 5 years, or until it becomes full. Capacity: 147 cc.
1. On the right side of the machine, remove the ink collector unit (p.531).
2. Remove the right cover (p.239).
3. Remove the right upper cover (p.241).
4. Disconnect the sump and pull it out slowly (
x1).
• To avoid spilling ink, do not tilt the sump while you remove it.
Maintenance Unit, Waste Ink Collection
533
