Ricoh MP CW2201

Roll Units
Roll End Sensor
• Blower brush
This procedure is the same for both roll end sensors [A] [B].

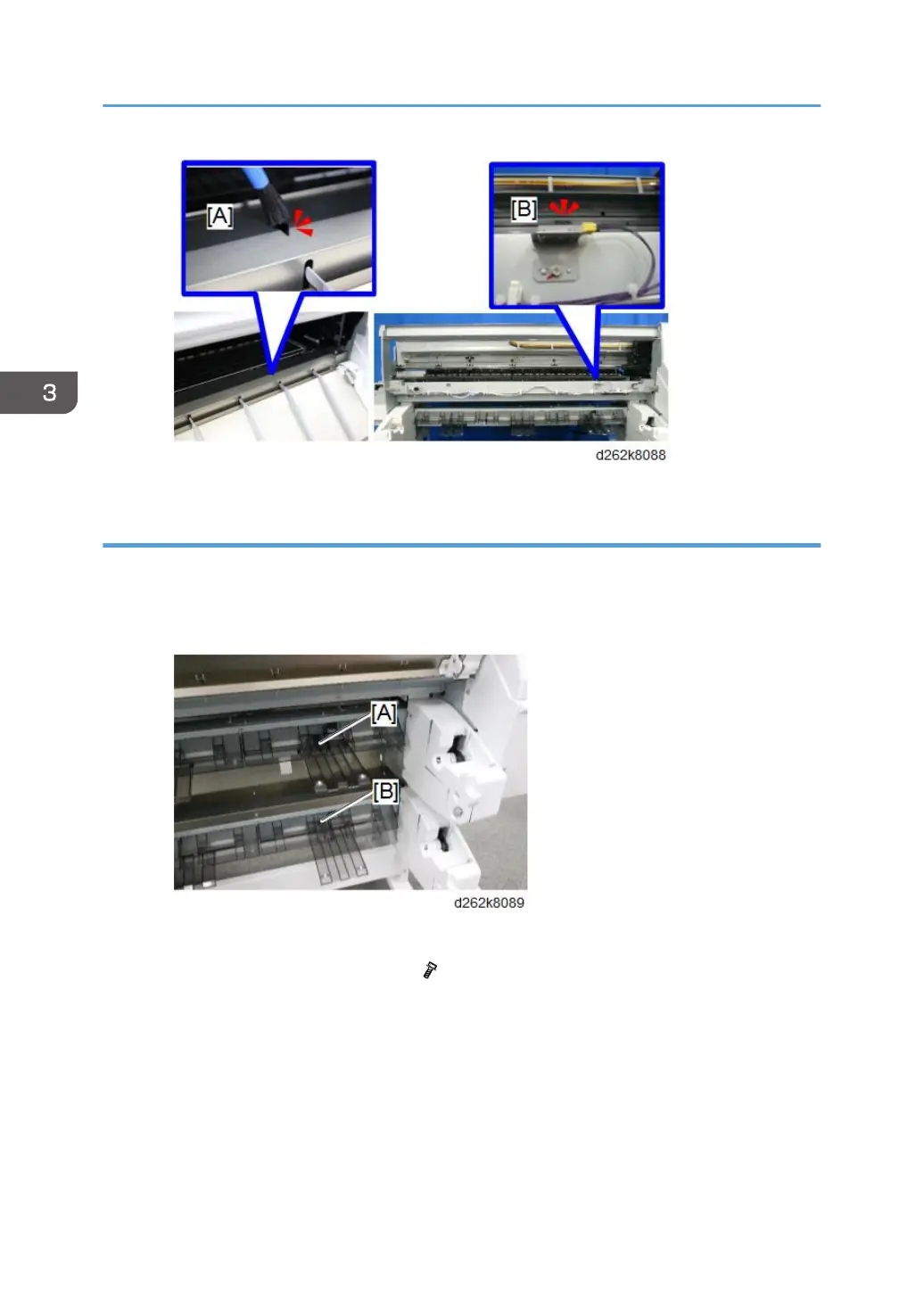

1. The roll end sensors are located on the back of Roll Unit 1 and Roll Unit 2.
2. Remove the sensor cover plate [A] ( x2).
3. Preventive Maintenance
208
