3. RFDB ( x2).

IOB (Input/Output Board)

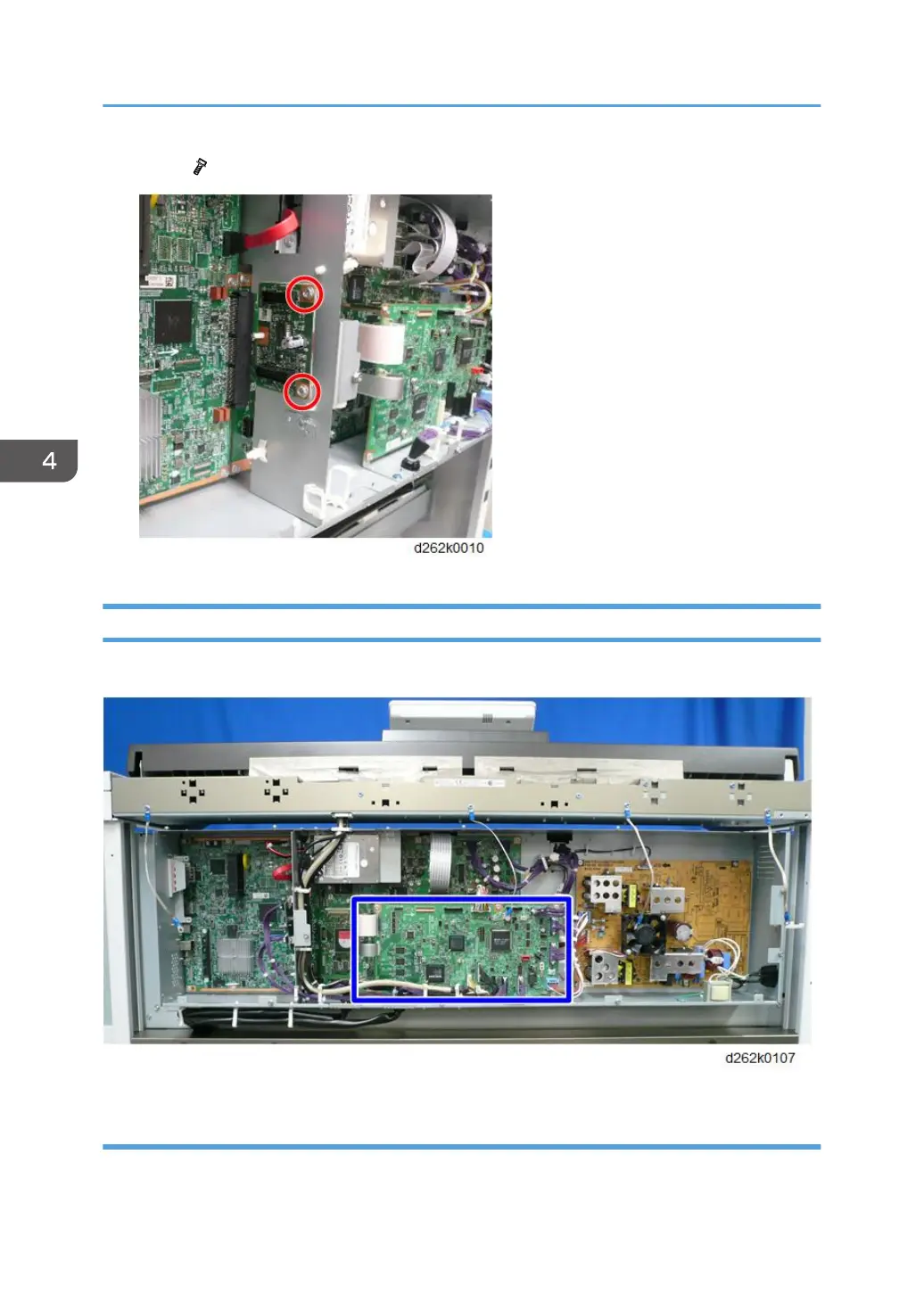

The blue frame shows the location of the IOB.

Remove

1. Rear cover (p.544).

4. Replacement and Adjustment

558
