Ricoh MP CW2201 Service Manual

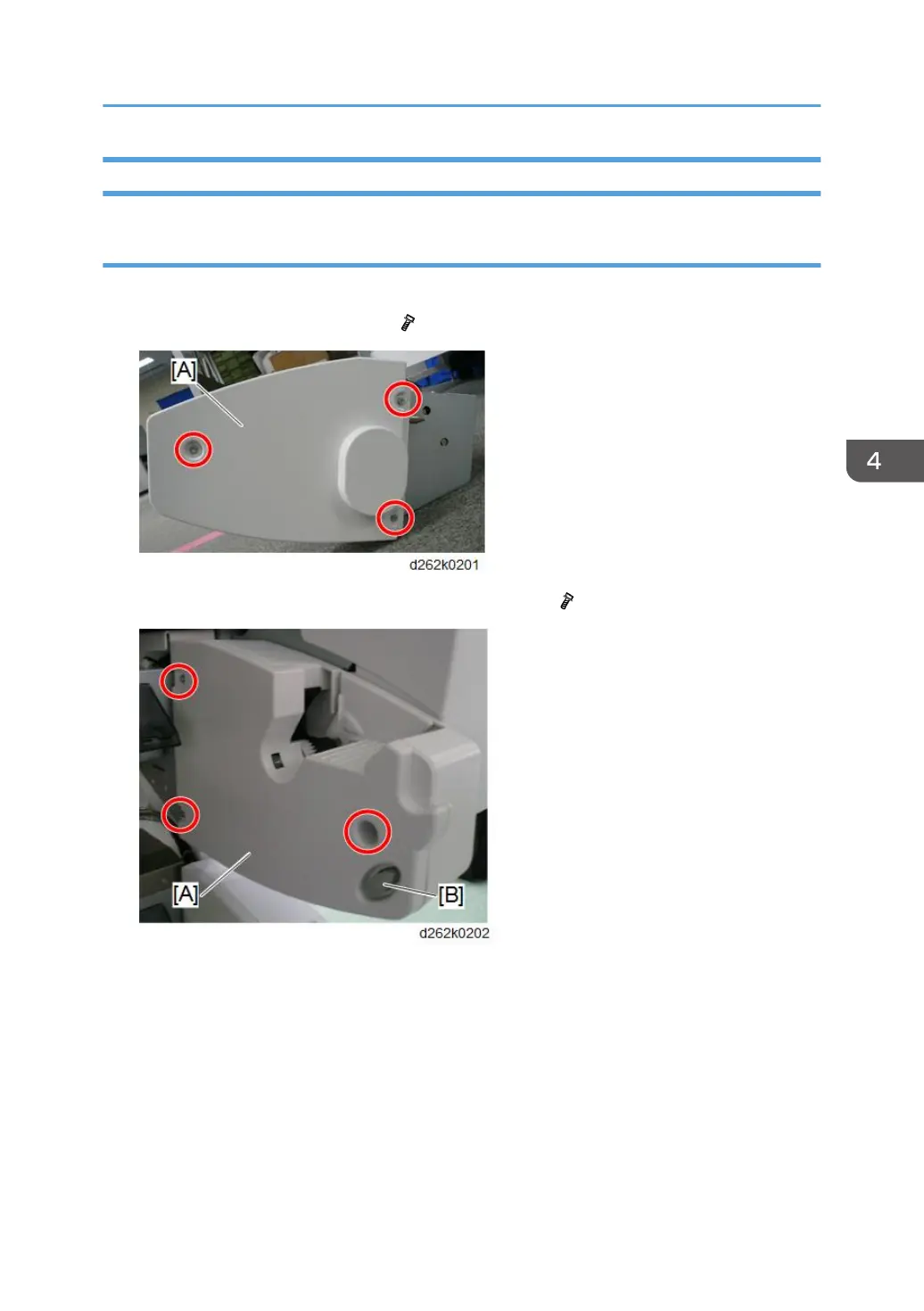

Rewind Switch
Remove
1. Remove the roll unit (p.314, p.322).
2. Remove the right outer cover [A] ( x3).
3. Remove the right outer cover [A] and switch cover [B] ( x3).
Roll Units
329
