Ricoh MP CW2201 Service Manual

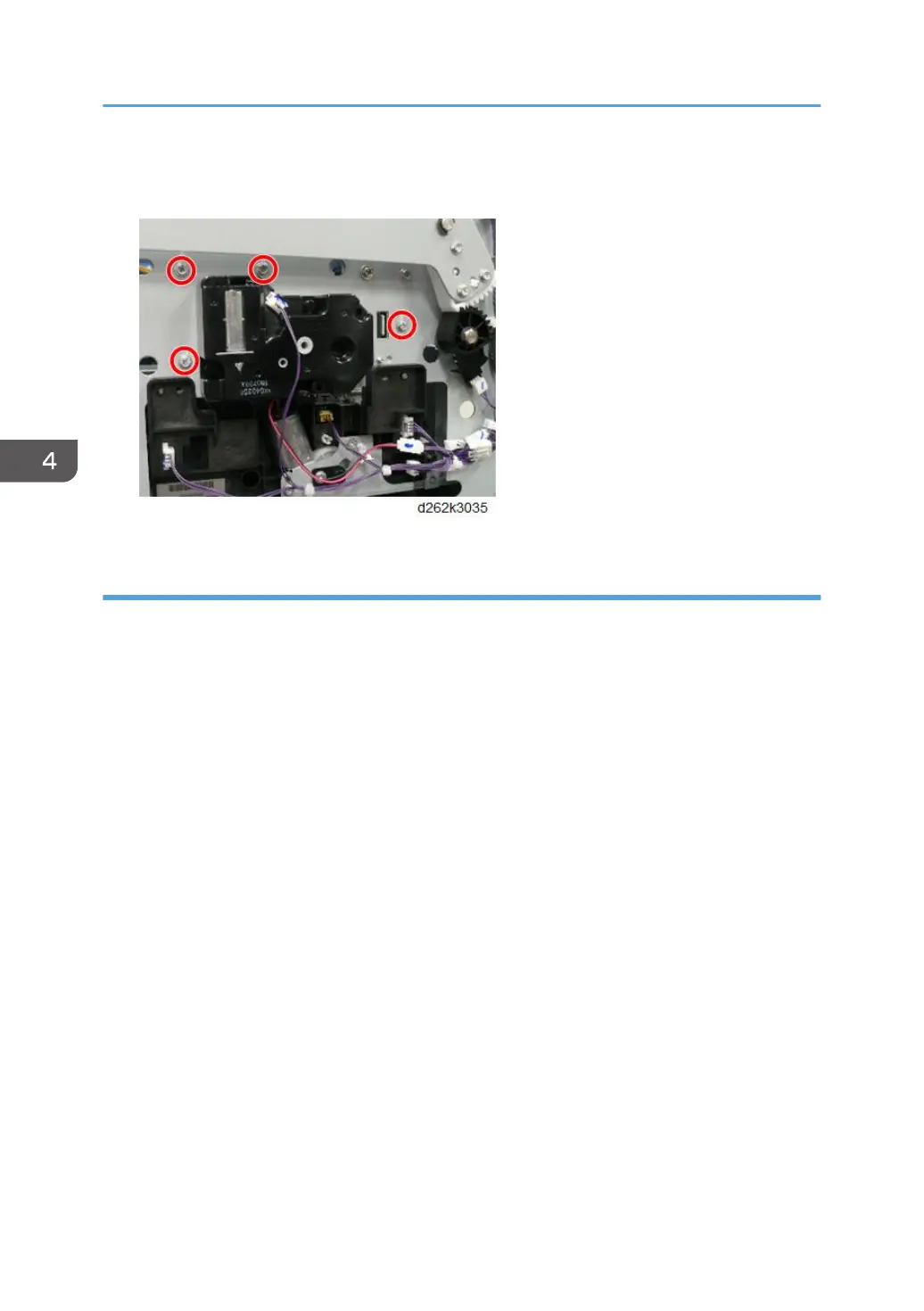

Four screws beneath the paper holding lever (the figure below is with the right cover
removed)
Remove Ink Supply Unit
1. Remove the maintenance unit (p.534).
2. Remove the top cover (p.245).
3. Remove the ink collector tank (p.531).
4. Remove the ink cartridge cover (p.243).
5. Remove the front cover (p.249).
6. Remove the paper exit guide (p.251).
4. Replacement and Adjustment
466
