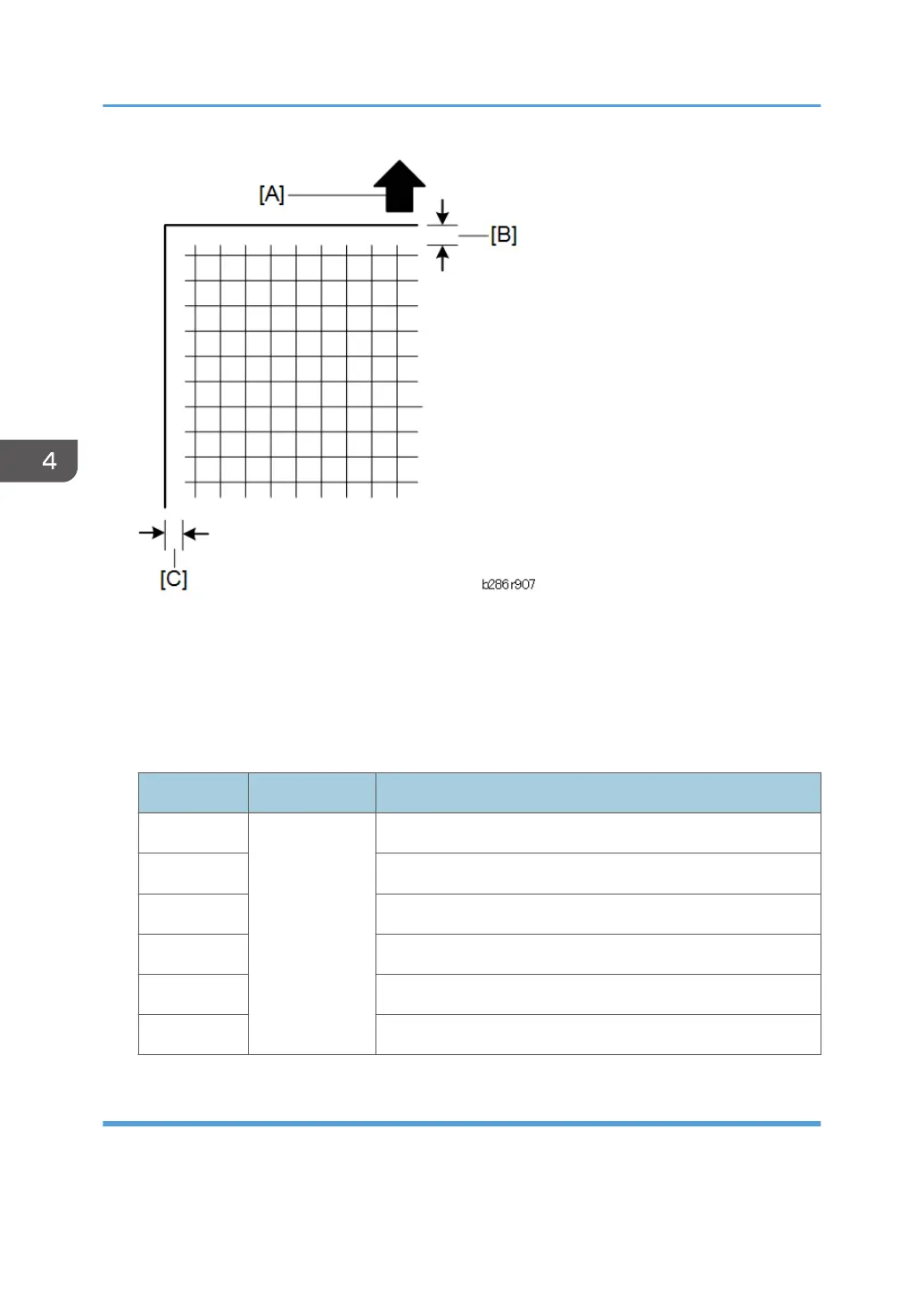

[A]: Direction of Paper Feed
[B]: Sub Scan: 5 ±0.5 mm
[C]: Main Scan: 5 ±0.5 mm
3. Touch "SP Mode" at the top of the screen, and then adjust these SPs if a measurement is not within
"Standard".
SP Standard: Comments
1-001-001 5 ±0.5 mm Print Position Adj (Top Edge) - Bypass Feed
1-001-002 Print Position Adj (Top Edge) - Paper Input 1
1-001-003 Print Position Adj (Top Edge) - Paper Input 2
1-002-001 Print Position Adj (Left Edge) - Bypass Feed
1-002-002 Print Position Adj (Left Edge) - Paper Input 1
1-002-003 Print Position Adj (Left Edge) - Paper Input 2
Step 7: Scanner Mask Setting
Do these SPs to replace the “0” settings done in Step 5.
