Ricoh MP CW2201

To Next Page

To Previous Page

New Black Print Head Unit Installation

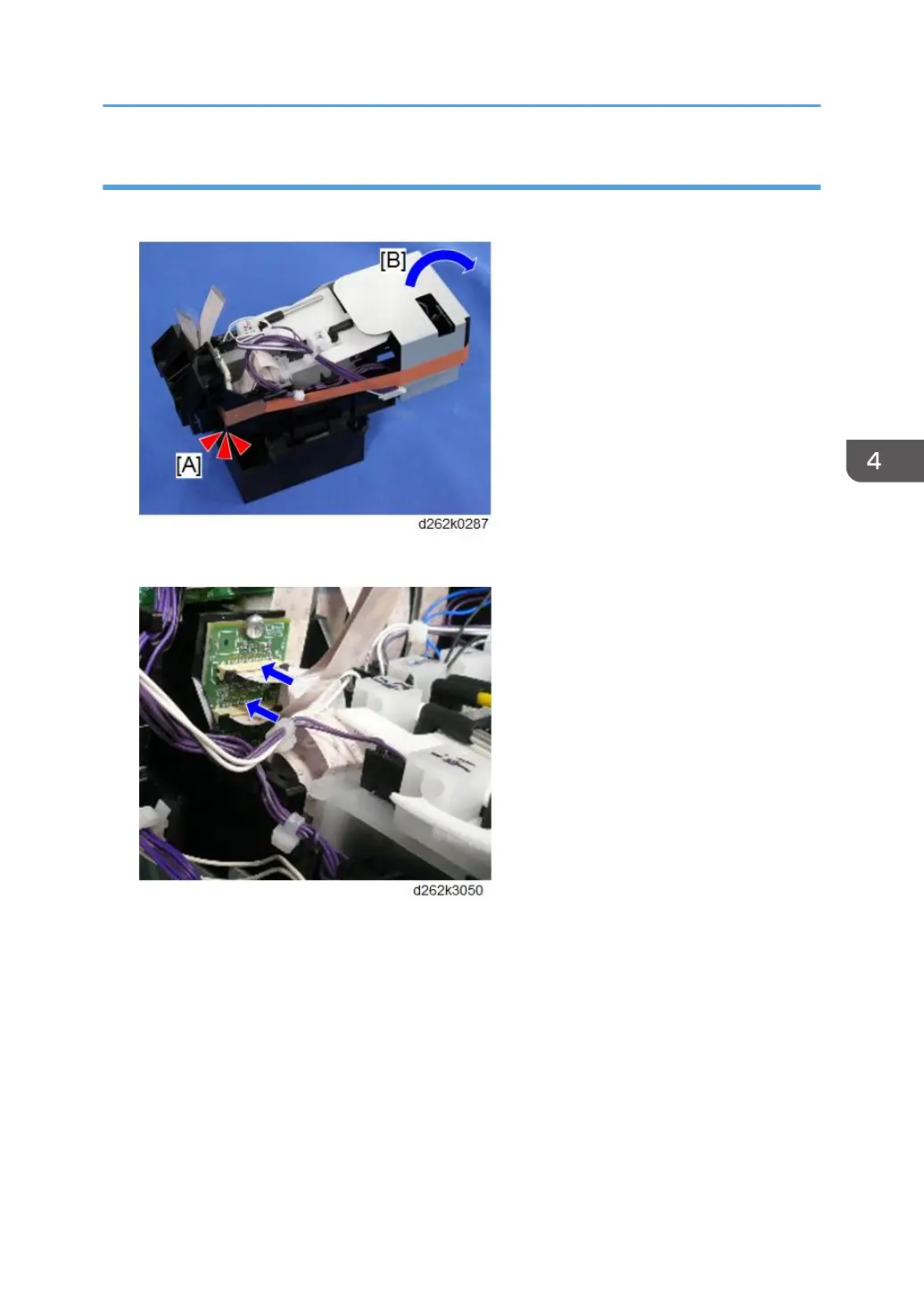

1. Remove the orange tape [A] and bracket [B] from the new print head.

2. Attach the released FFCs to the new print head.

Carriage Unit

437
