Ricoh MP CW2201 Service Manual

No. Item
2 Scanner motor
3 SIB
4 Original set sensor
5 Original registration sensor
6 Original exit sensor
7 CIS unit (5 elements)
8 Original stop switch
9 Original width sensors
Original Width Detection

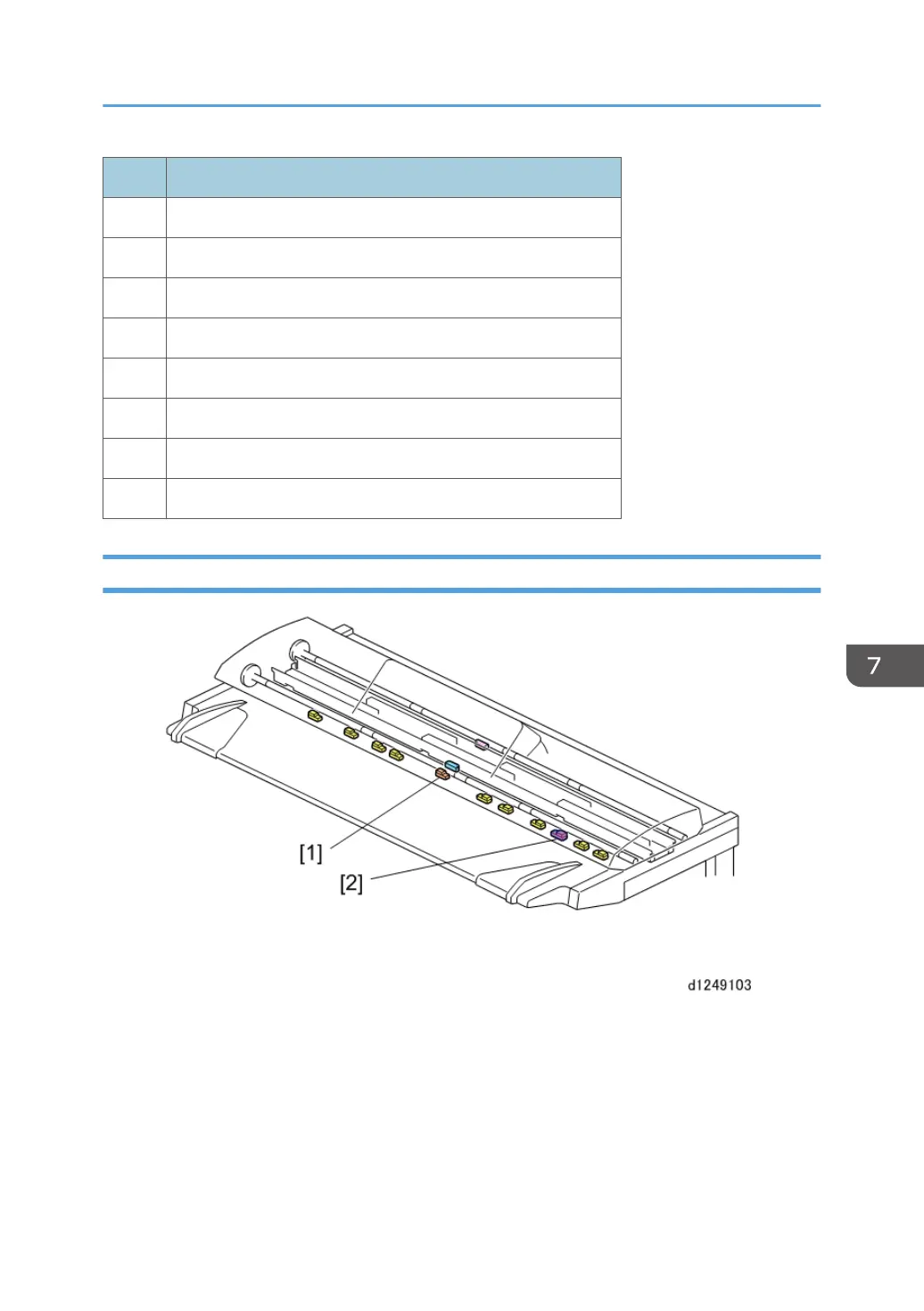

Several sensors are used to detect the width of the original when it is set on the original table:
• Metric
10 sensors: 9 original width sensors plus the original set sensor [1] which also functions as a width
sensor.
Scanner Unit
775
