Ricoh MP CW2201

To Next Page

To Previous Page

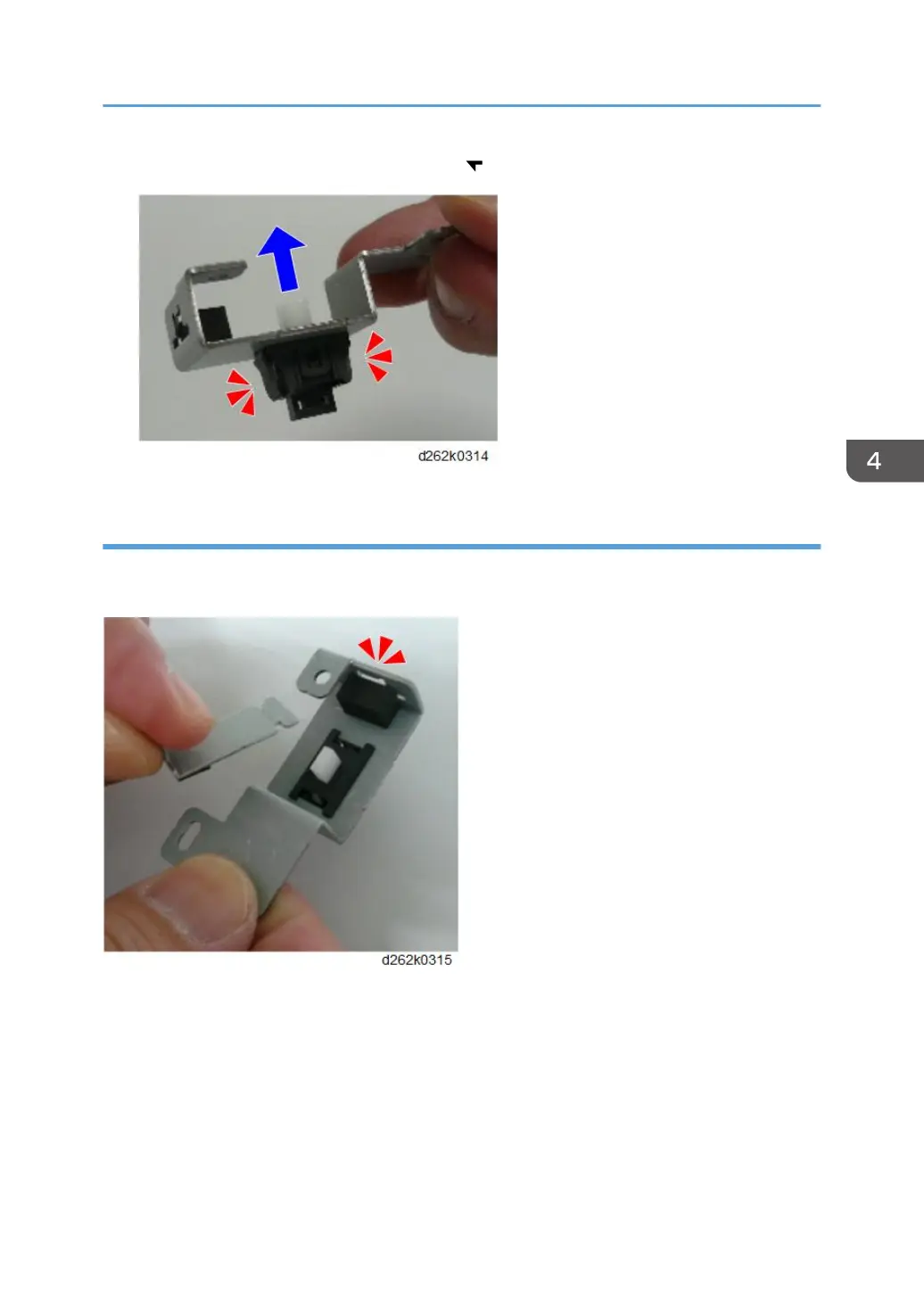

6. Front cover switch from the switch bracket ( x2).

Precaution

Support the bracket with the front cover switch attached as shown below, and insert the top of the lever

into the hole on the back of the rubber.

Sensors, Switches

577
