Ricoh MP CW2201 Service Manual

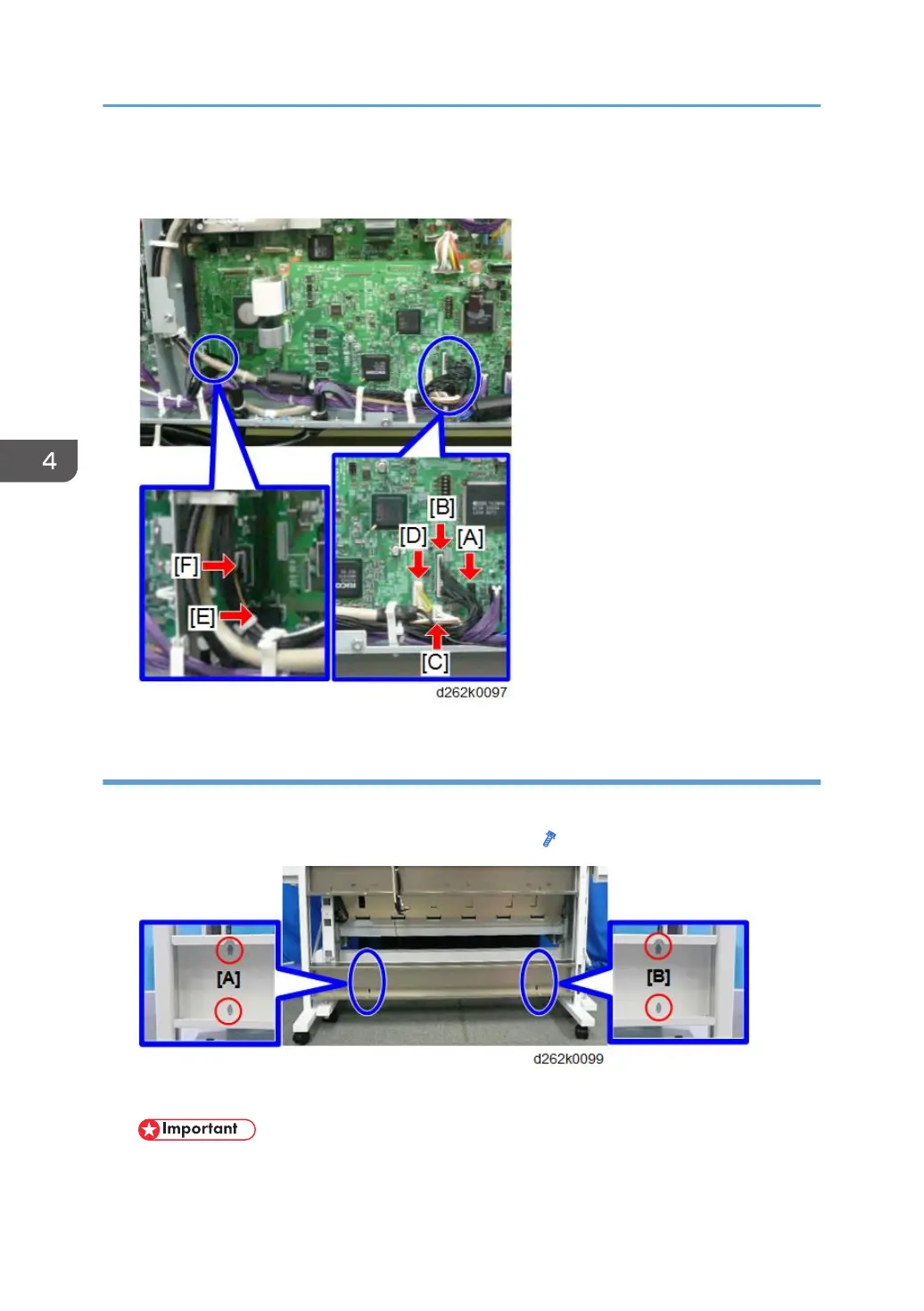

6. Disconnect all the connectors from CN258 [A], CN259 [B], CN256 [C], and CN257 [D] on
IOB and CN216 [E] and cn215 [F] on BiCU
Separating the Main Unit from the Scanner Unit
Separate the main unit from the scanner unit completely.
1. Disconnect the scanner unit from the bracket [A] [B] ( x4: 4x6).
2. Slowly, pull the scanner stand away from the back of the main unit.
• To avoid scratching or breaking the original table, never lay anything on the original table
while you are working.
4. Replacement and Adjustment
278

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
