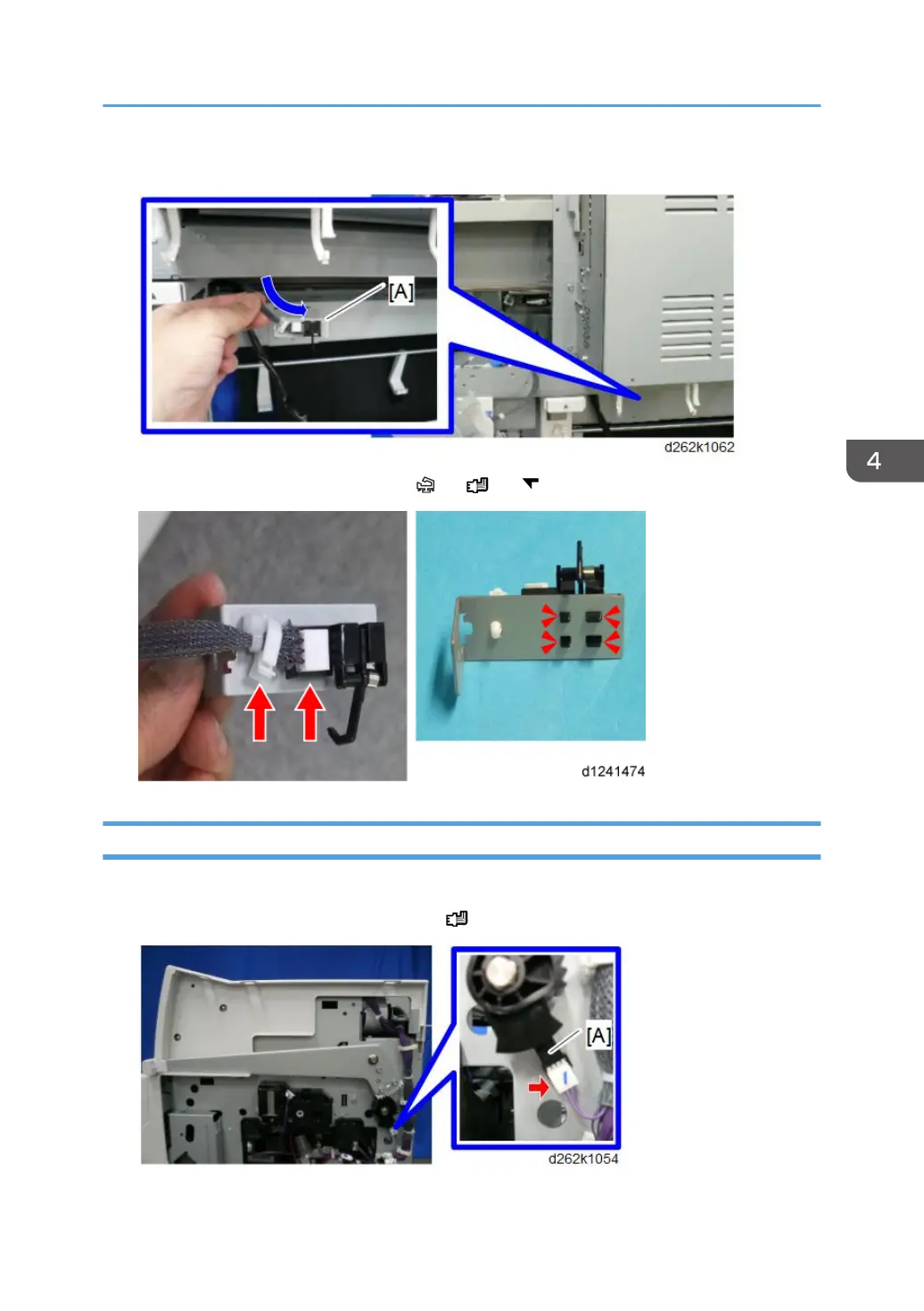

4. Pull out the pre-registration sensor bracket [A] from under the PCB box.
5. Remove the pre-registration sensor ( x1, x1, x4)
Registration End Sensor
1. Remove the right cover (p.247).
2. Remove the registration end sensor [A] ( x1).
Paper Transport
363
