Ricoh MP CW2201 Service Manual

Main Carriage Screws

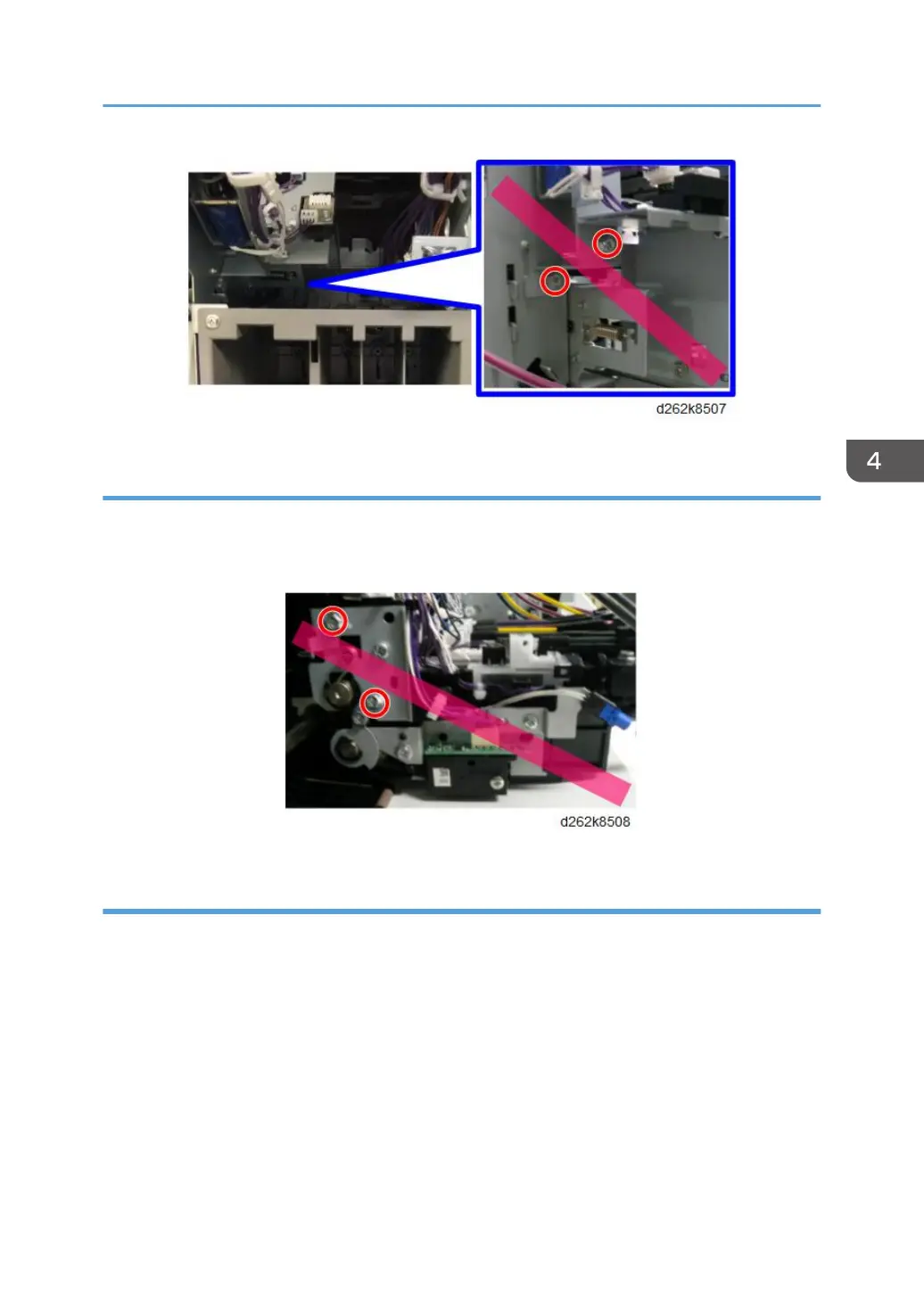

The illustration above shows the left cover of the carriage unit removed. It is extremely important you
never loosen or remove these screws. Tampering with these screws could cause the carriage unit to fall
out of alignment or onto the platen plates.
Temperature/Humidity Sensor Bracket
This screw is paint locked. However, this bracket must be removed in order to remove the carriage unit.
The bracket must be reinstalled at exactly the same position so the sensors are positioned correctly
(p.465).
