Ricoh MP CW2201 Service Manual

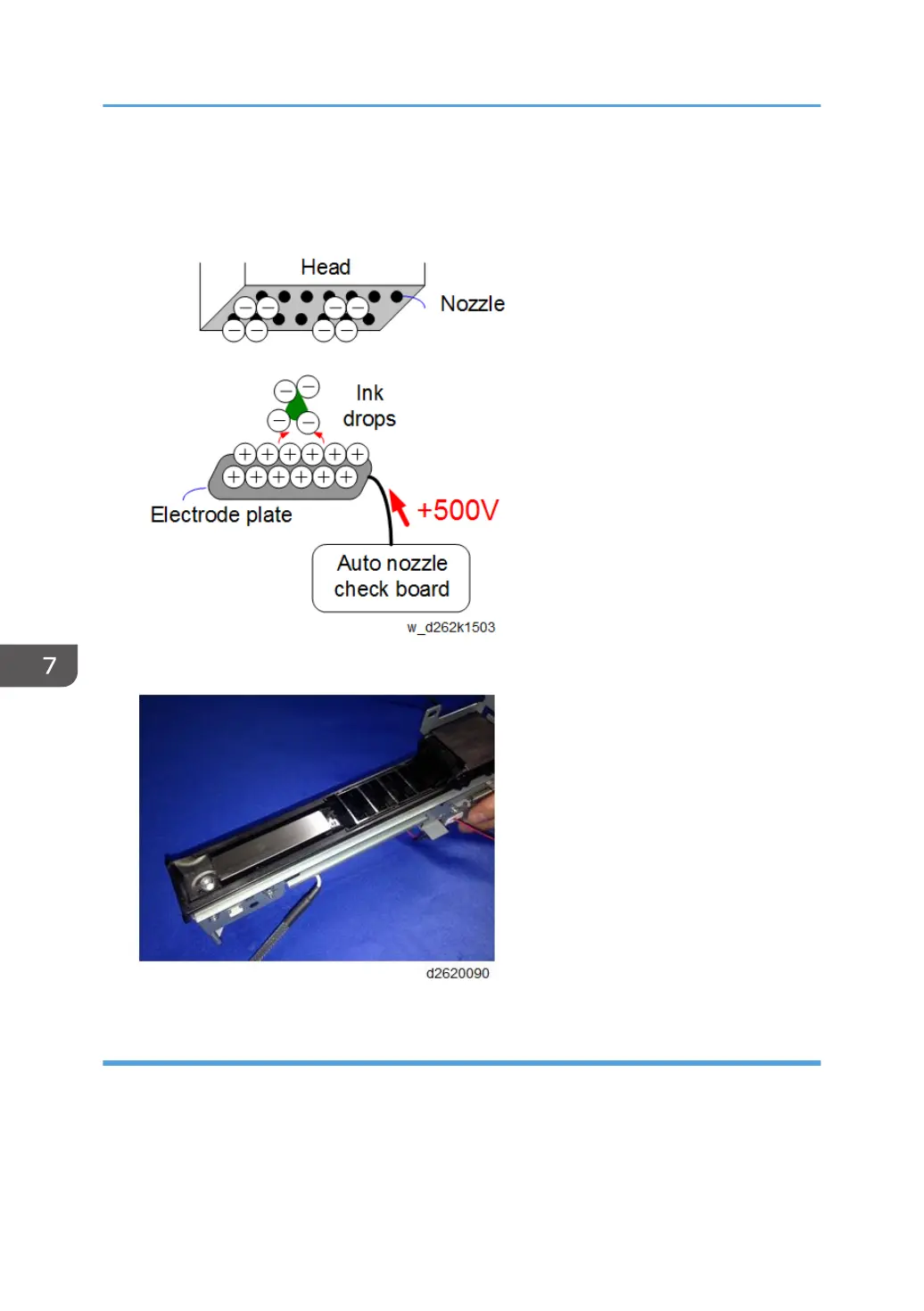

After dropping ink from all nozzle, the carriage moves outside the area, where wiping is inhibited and
the electrode plate is wiped.
Detection Image
Electrode Plate
Wiping an Electrode Plate
The slider moves back and forth driven by the timing belt, which is driven by a wheel rotated by the
wiper drive motor.
7. Detailed Description
866

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
