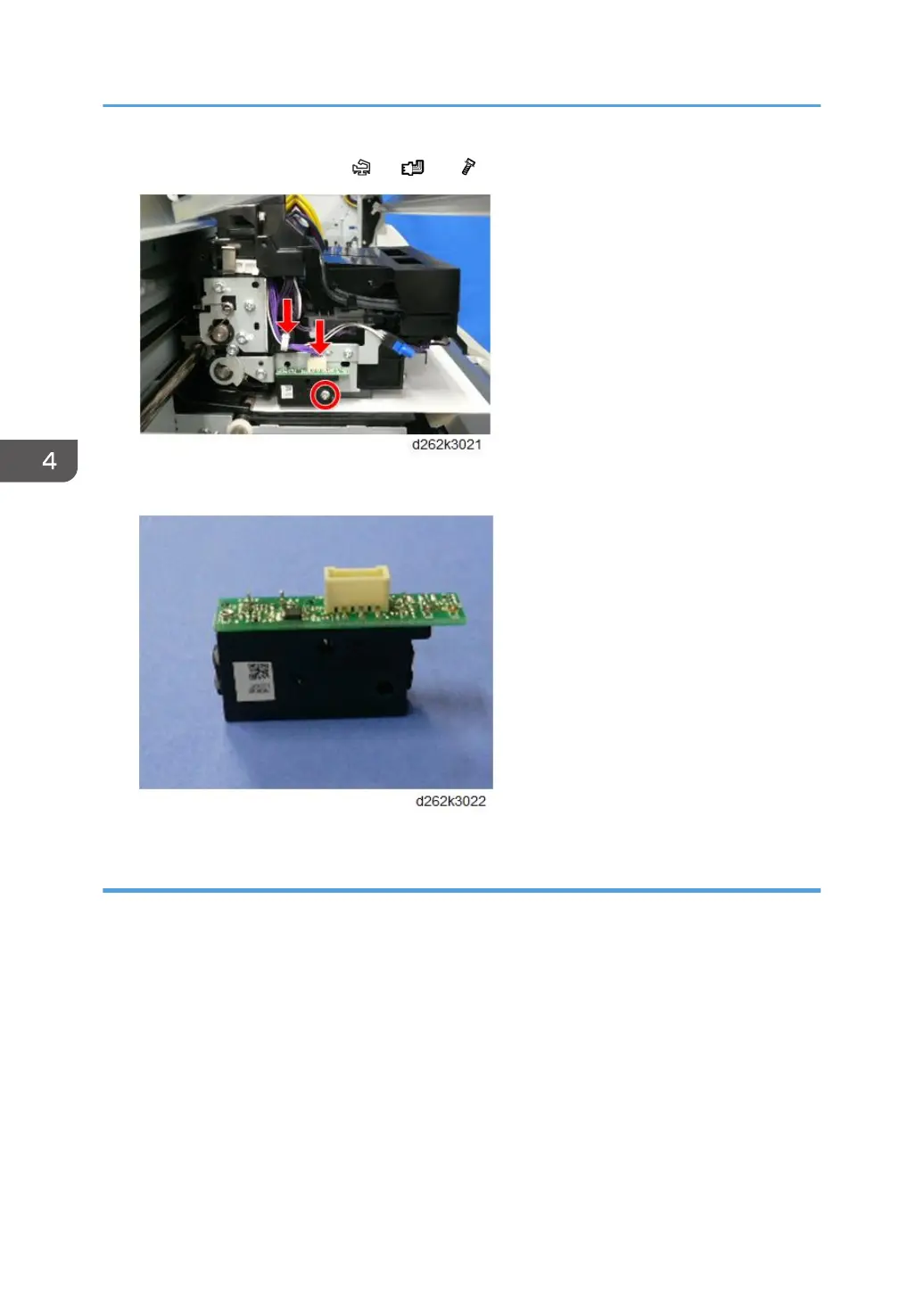

6. Remove the DRESS sensor. ( x1, x1, x1)

DRESS Sensor

Cleaning

Remove the paper dust on the sensor with a blower brush. If the ink-mist is attached, remove it with non-

woven fabric or a cotton swab.
