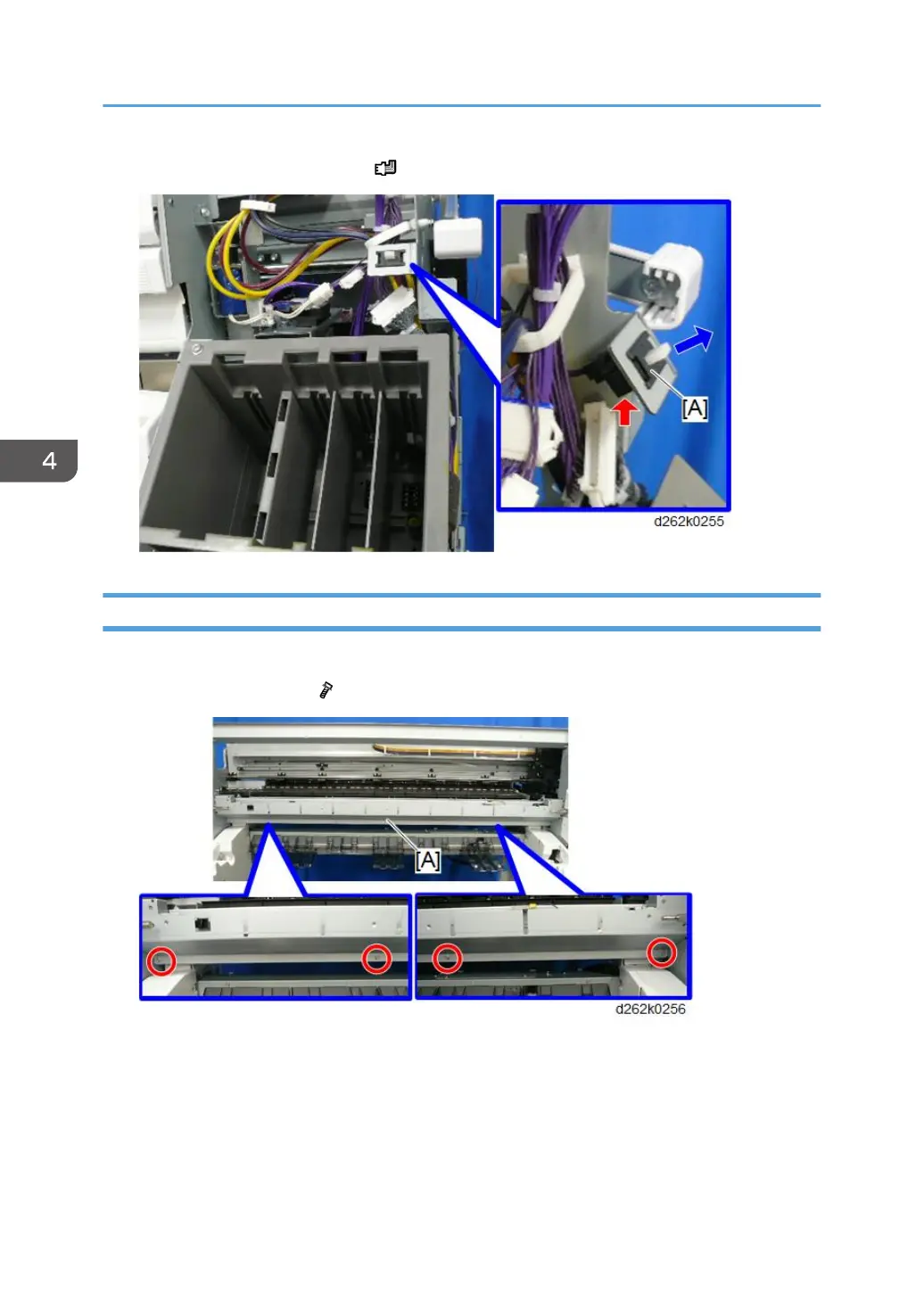

4. Ink-cartridge cover switch [A] ( x1).

Front Cover Safety Switches

1. Paper Exit guide (p.251).

2. Lower guide plate [A] ( x4).

4. Replacement and Adjustment

574
