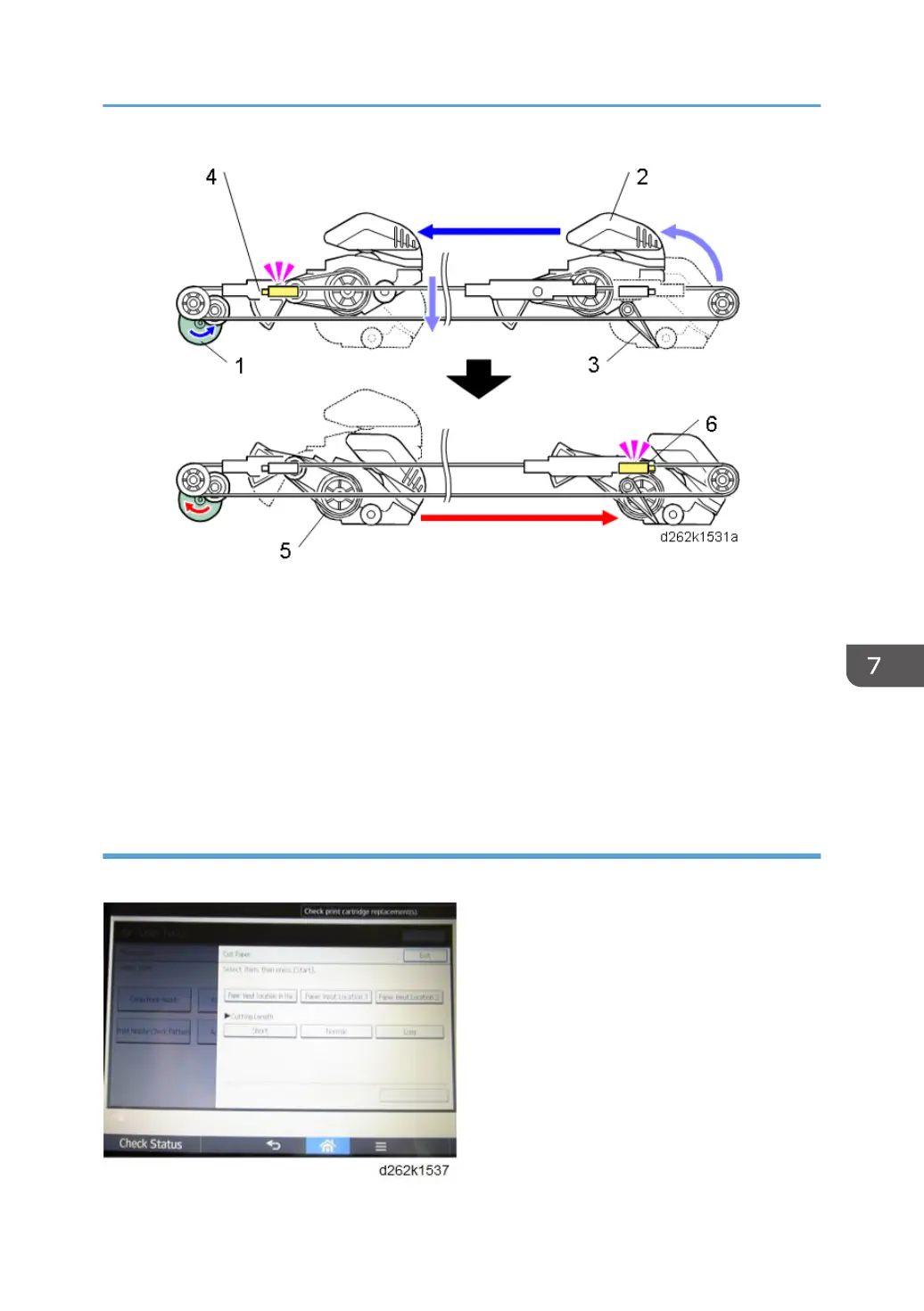

1. At the end of the job, the cutter motor (1) switches on.
2. The timing belt pulls the cutter (2) to the left as its circular blade (3) cuts the paper in its path.
3. When the cutter reaches the cutter return switch (4) at the end of the cut, the cutter motor reverses.
4. Immediately, the cutter drops into a lower race at (5). This lowers the cutter so it is below the paper.
5. The motor and drive belt pull the cutter back to the right. When the cutter reaches the cutter HP
sensor (6), the sensor signals the machine to shut down the motor and the cutter stops at its home
position.
Manual Cut
Manual Cut is to fed and discard paper that is damaged by moisture or paper jam.
Paper Feed and Exit
823
