Ricoh MP CW2201 Service Manual

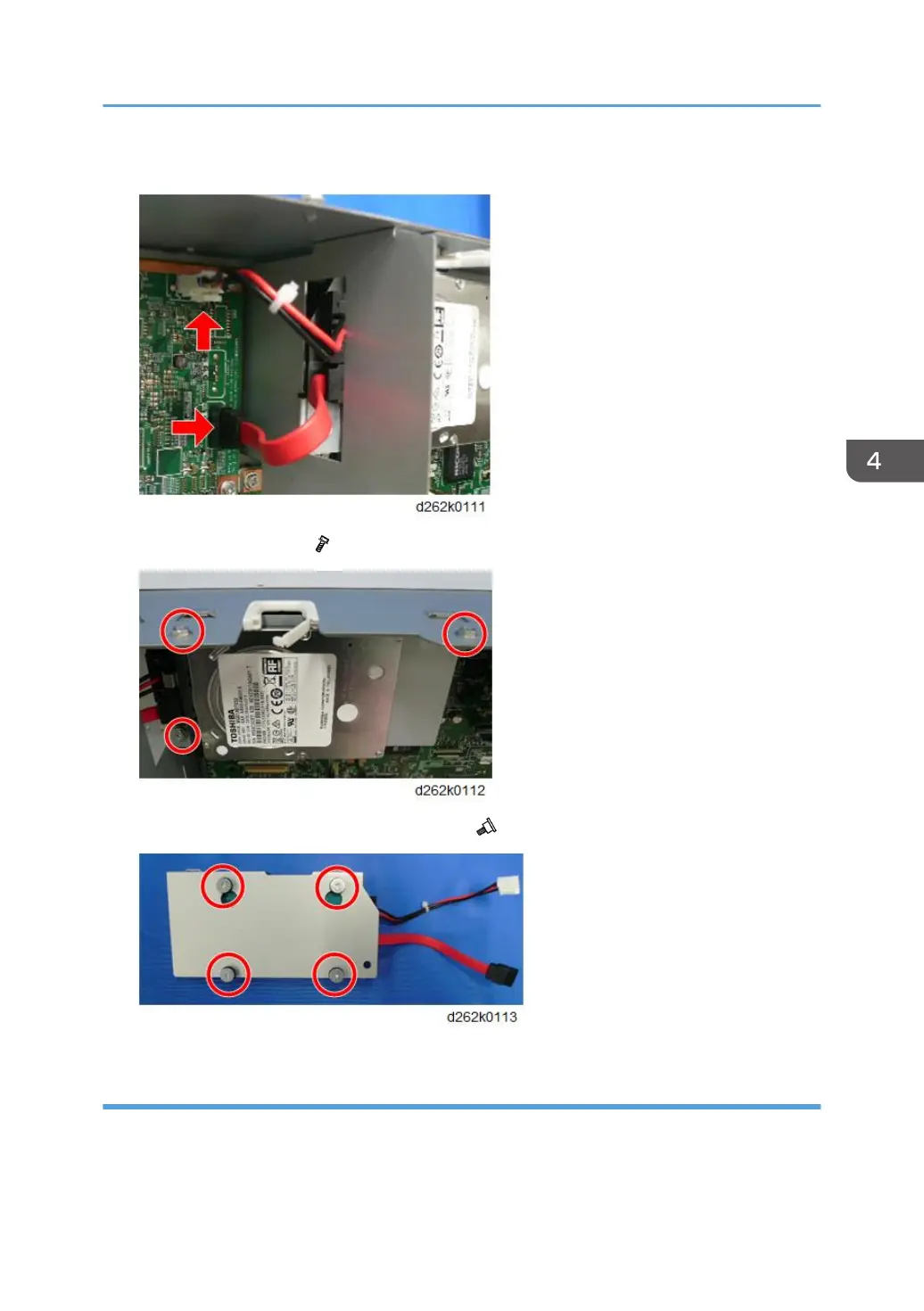

2. Disconnect the connector of the HDD from the controller board.
3. HDD with the bracket ( x3).
4. Turn the bracket over and remove the HDD ( x4).
Settings
• After replacement, hand over the removed HDD to the customer or damage the HDD and bring it
back (non-free).
Electrical Components
561

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
