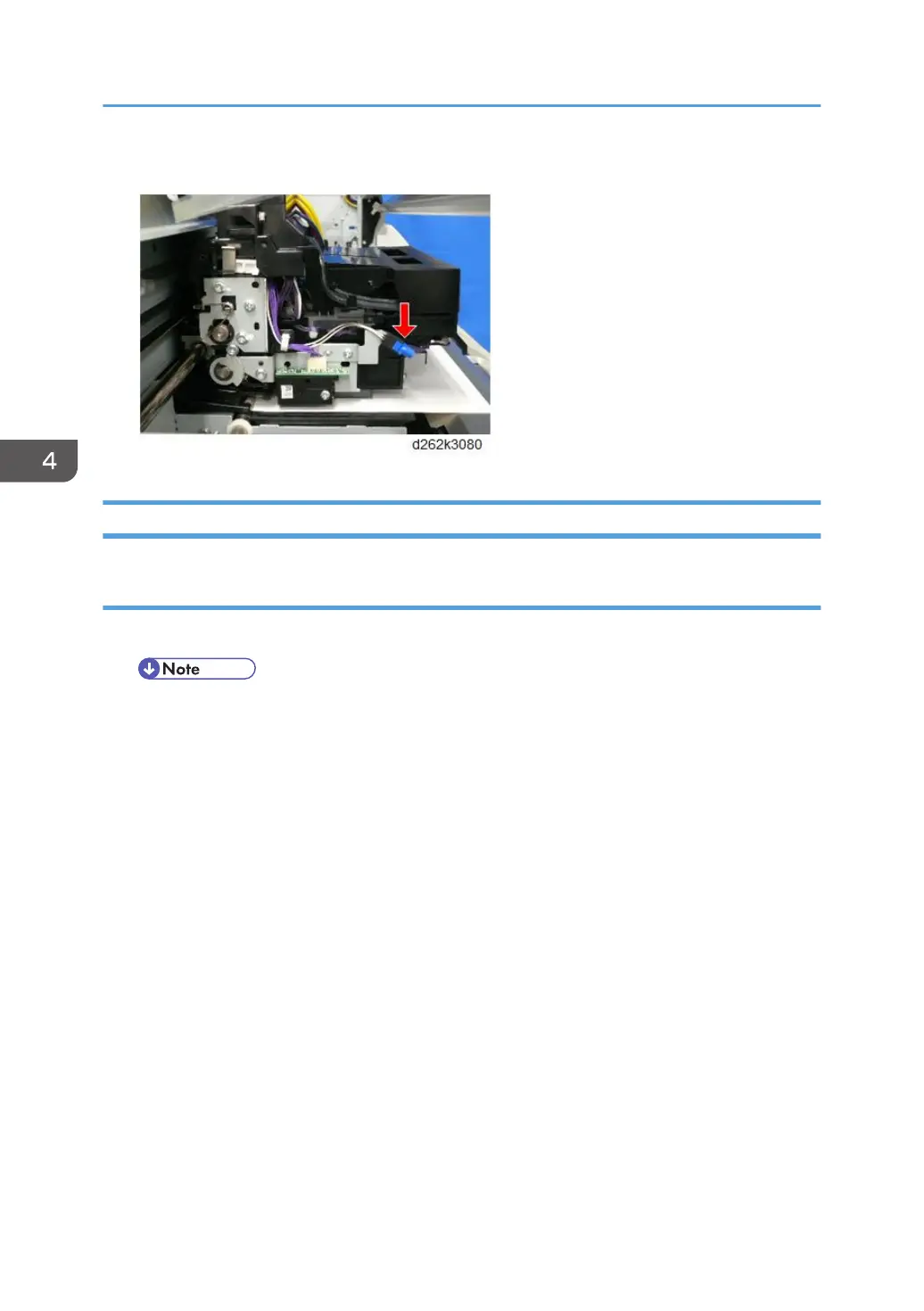

6. Remove the LED.
HRB (Head Relay Board)
Remove
1. Uncap the print head and move the carriage unit to the center of the main unit (p.267).
• When the carriage unit is moved, ink may spill out from the print head onto the platen. To
move the carriage unit, place a sheet of plain paper under the carriage unit to protect the
platen.
• The sheet under the carriage unit should be flat, with no paper wrinkling, which could scratch
the nozzle face or cause clogging of the nozzle.
• Do not place any film under the carriage unit.
• To place the plain paper, do not pull up the paper holding lever too much (p.226).
2. Remove the top cover (p.245).
3. Remove the front cover (p.249).
4. Replacement and Adjustment
416
