Ricoh MP CW2201 Service Manual

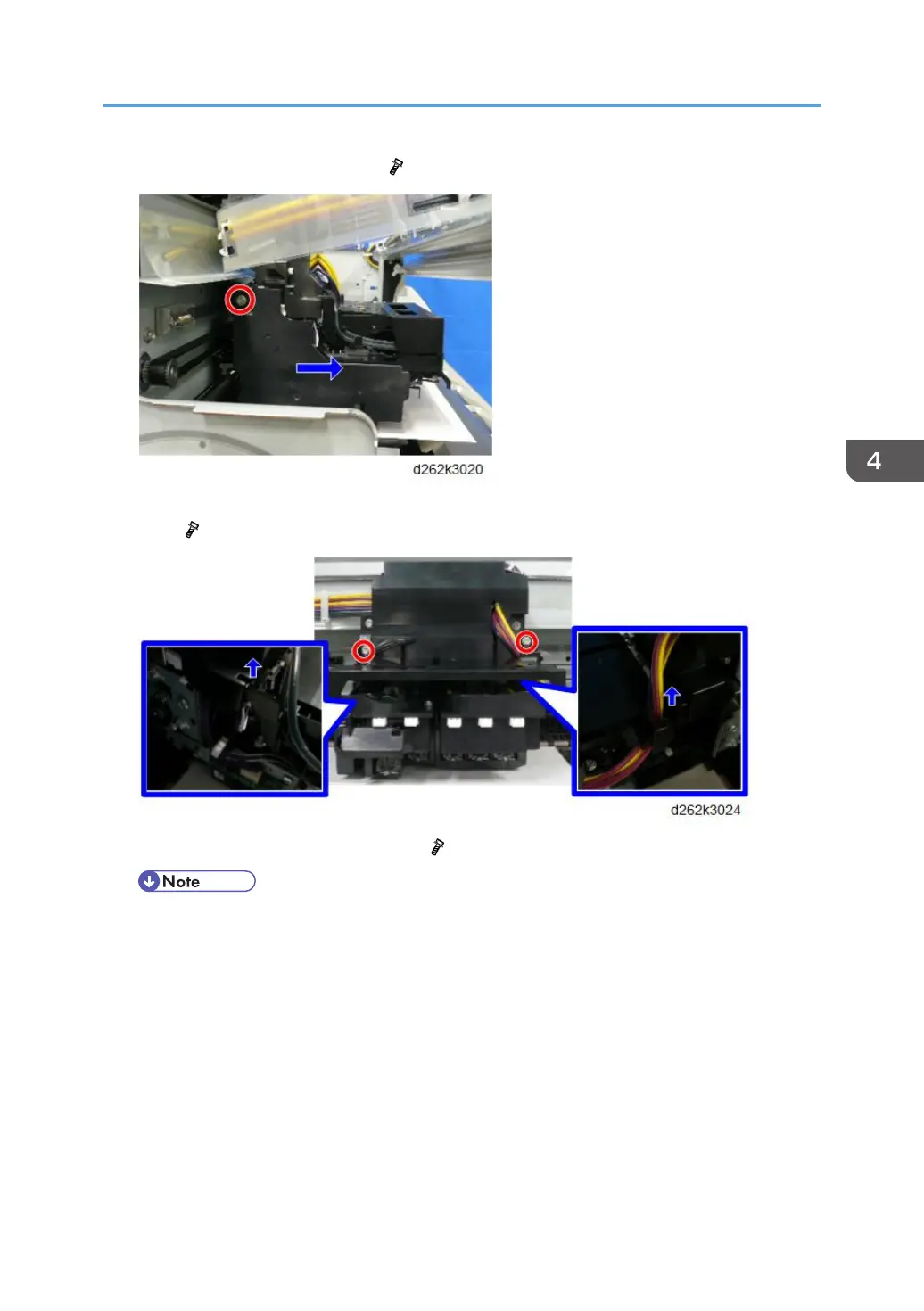

4. Remove the carriage left cover. ( x1)
5. Remove the carriage upper cover that hold the ink tubes on both sides of the carriage
unit. ( x2)
6. Remove the carriage front cover [A]. ( x2)
• To remove the carriage front cover, remove the ink tubes from the groove.
Carriage Unit
417

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
