• Before disposal, cover the slots on top of the sump with the covers provided.
• If the covers are not available, cover the slots with some strong tape to prevent the ink
from spilling out of the sump.
Air Release Solenoid
Preparation
• Move the Carriage Unit with SP2102-4 (p.267)
• Separate the Main Unit from the Scanner Unit (p.274)
Remove:
• Top cover (p.245)
• Ink cartridge cover (p.243)
• Front cover (p.249)
• Paper exit guide (p.251)
1. The air release solenoid is encased by a bracket.

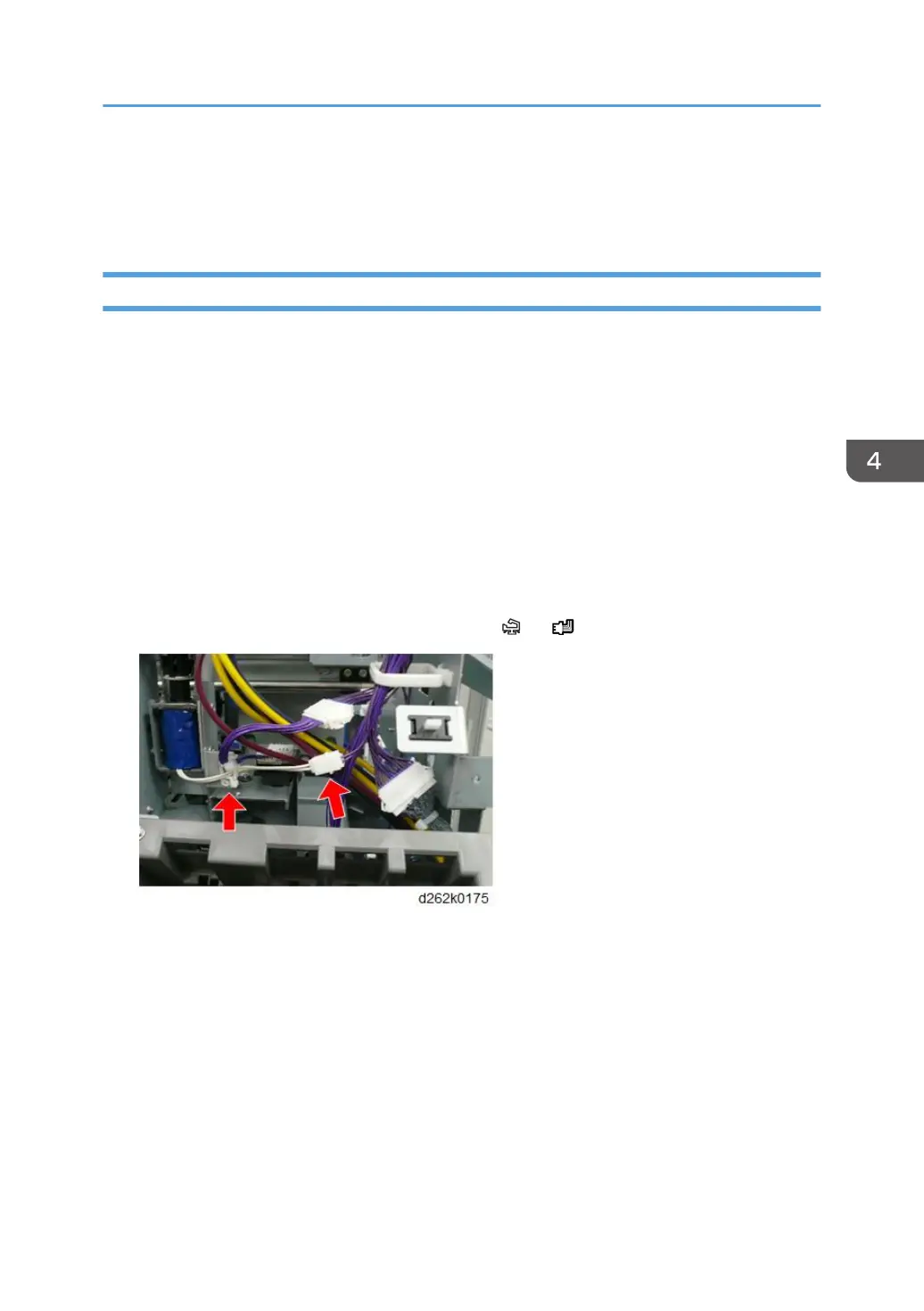

2. Release the clamp and disconnect the solenoid ( x1, x1).
