Ricoh MP CW2201

To Next Page

To Previous Page

Sub Scan

Vertical Encoder Sensor

Preparation

Remove:

• Left cover (p.234)

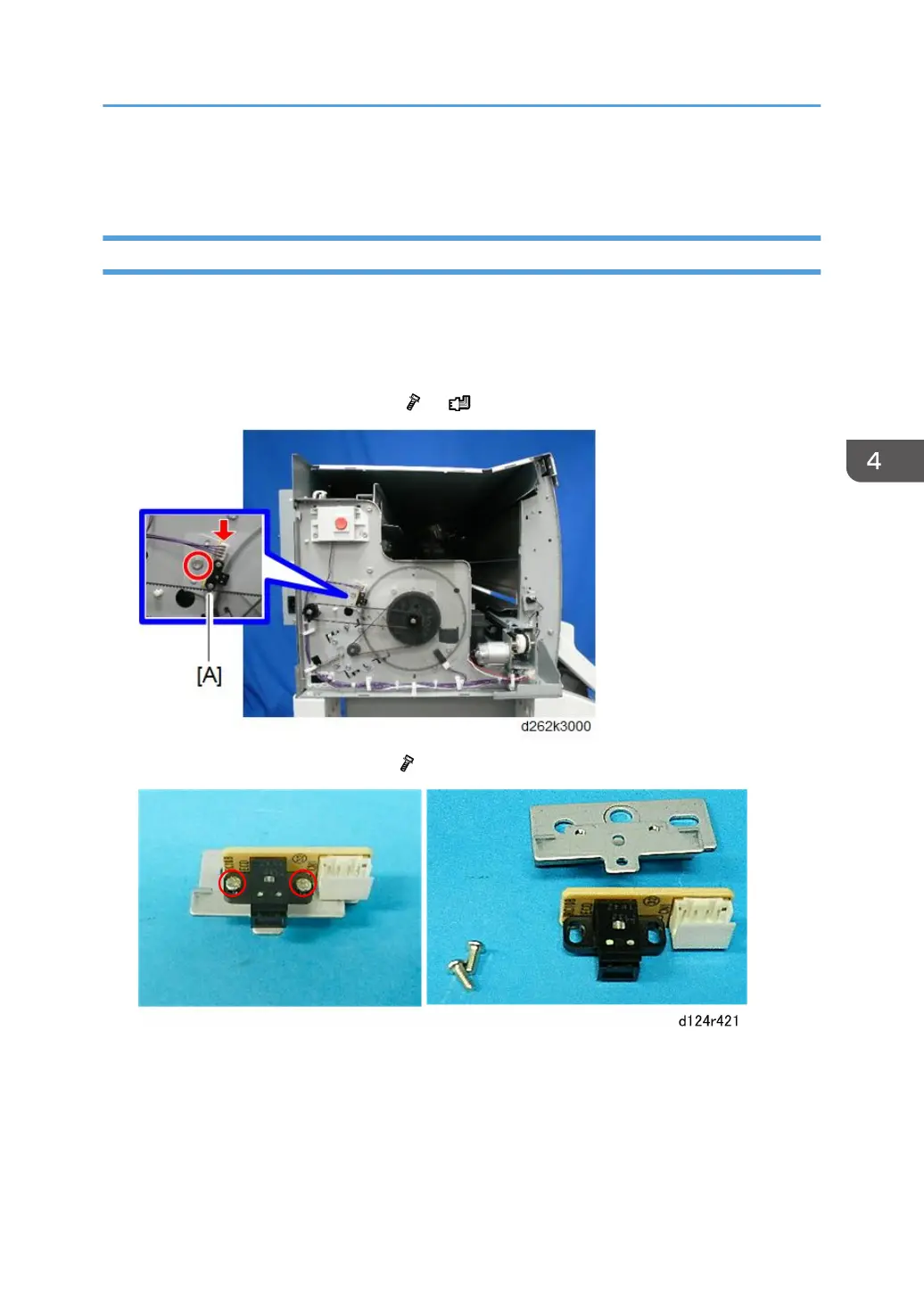

1. Disconnect the sensor bracket [A] ( x1, x1).

2. Separate the sensor and bracket ( x2).

Reinstallation

Sub Scan

393

Main Page
