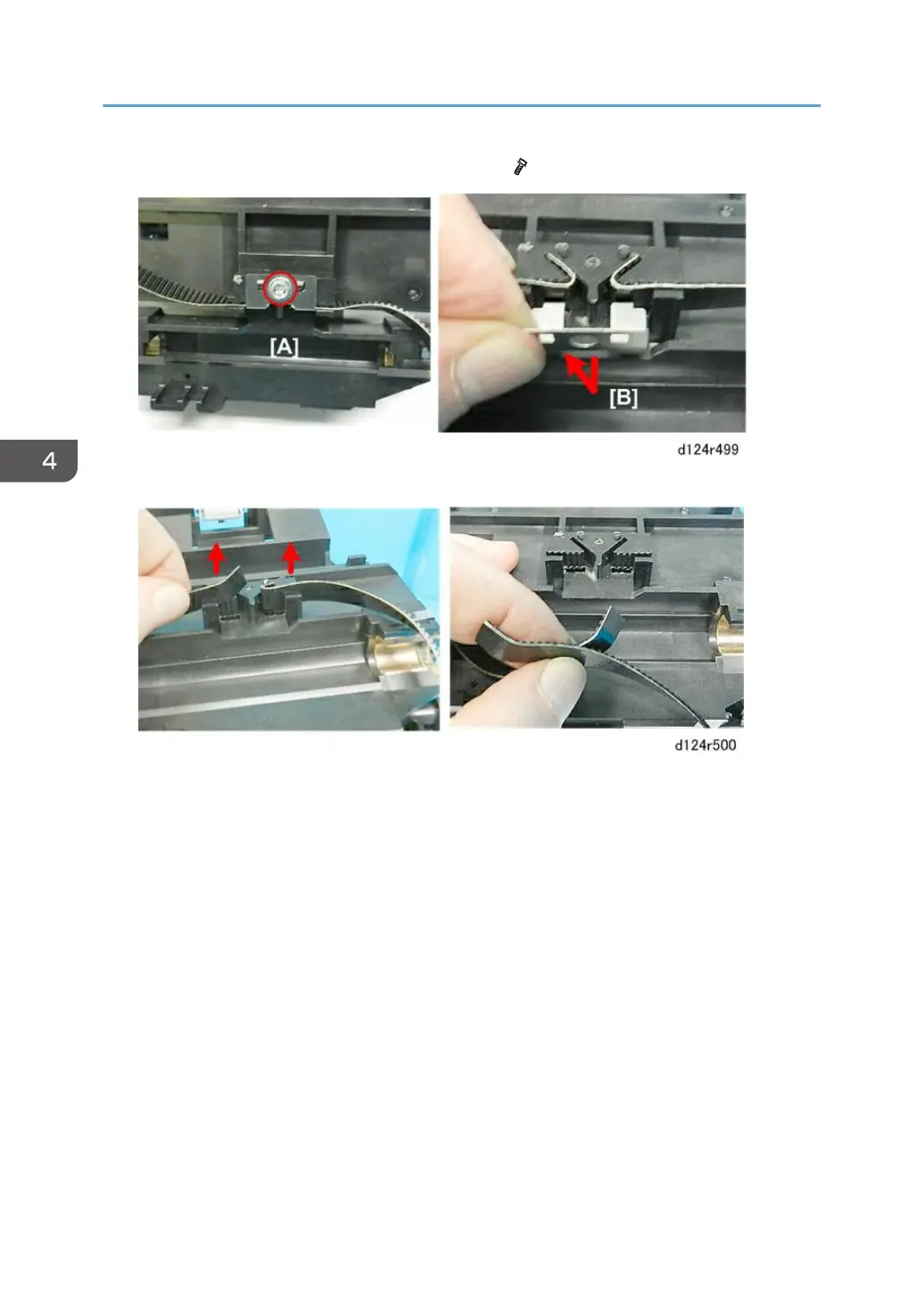

2. Remove the plate from the carriage unit [A] [B]. ( x1)

3. Remove both ends of the horizontal timing belt from the grip.
