Ricoh MP CW2201 Service Manual

Precaution

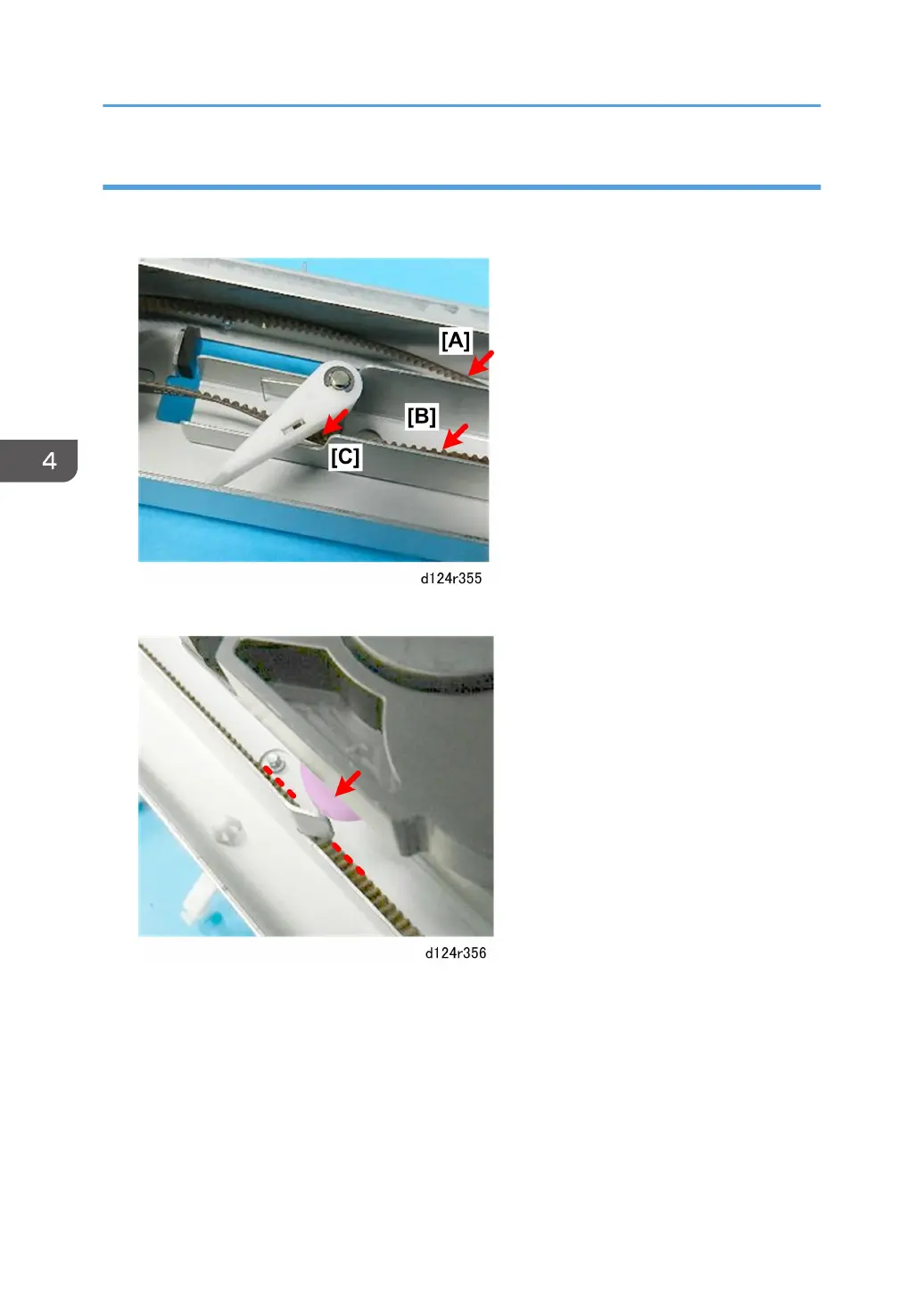

• On the right end, place the timing belt on the top rail [A], the lower rail [B], and then behind the
flapper [C].
• Position the belt below the cutter as shown below.
• Before reattaching the motor, make sure that the belt is positioned in the upper rail [A] and on the
lower rail [B].
4. Replacement and Adjustment
378

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
