Ricoh MP CW2201 Service Manual

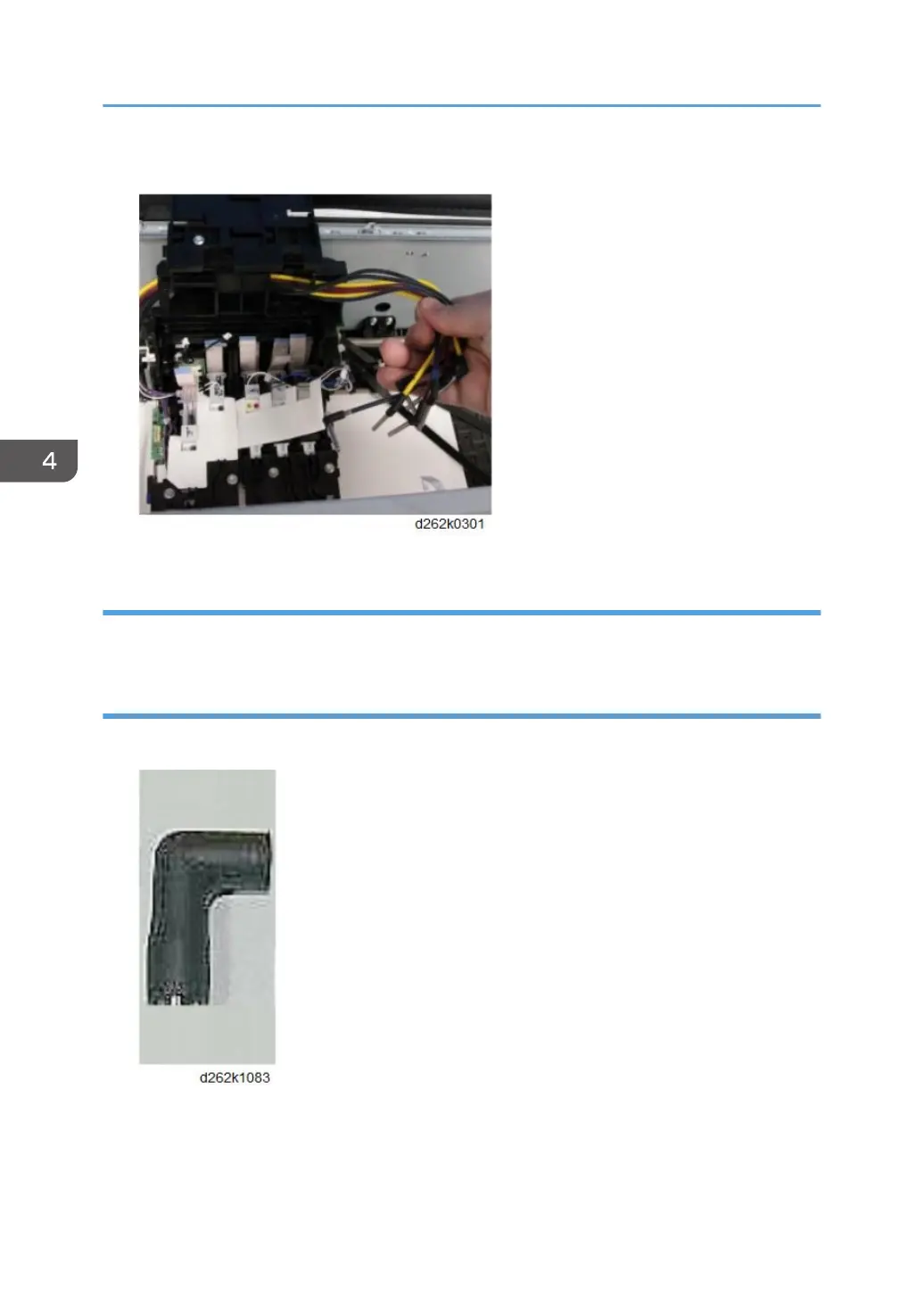

20. Push the tubes up and then pull them out of the carriage unit.
Ink Supply Unit Removal
Perform “Ink Supply Unit” in “Carriage Unit (Frame)” (p.466).
New Ink Supply Unit Installation
1. Cap the tip of each new tube with a rubber nozzle.
2. Follow in reverse order the removal procedure for the ink supply unit described above,
until you are ready to connect the ink supply tubes.
4. Replacement and Adjustment
514

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
