Ricoh MP CW2201 Service Manual

Precaution

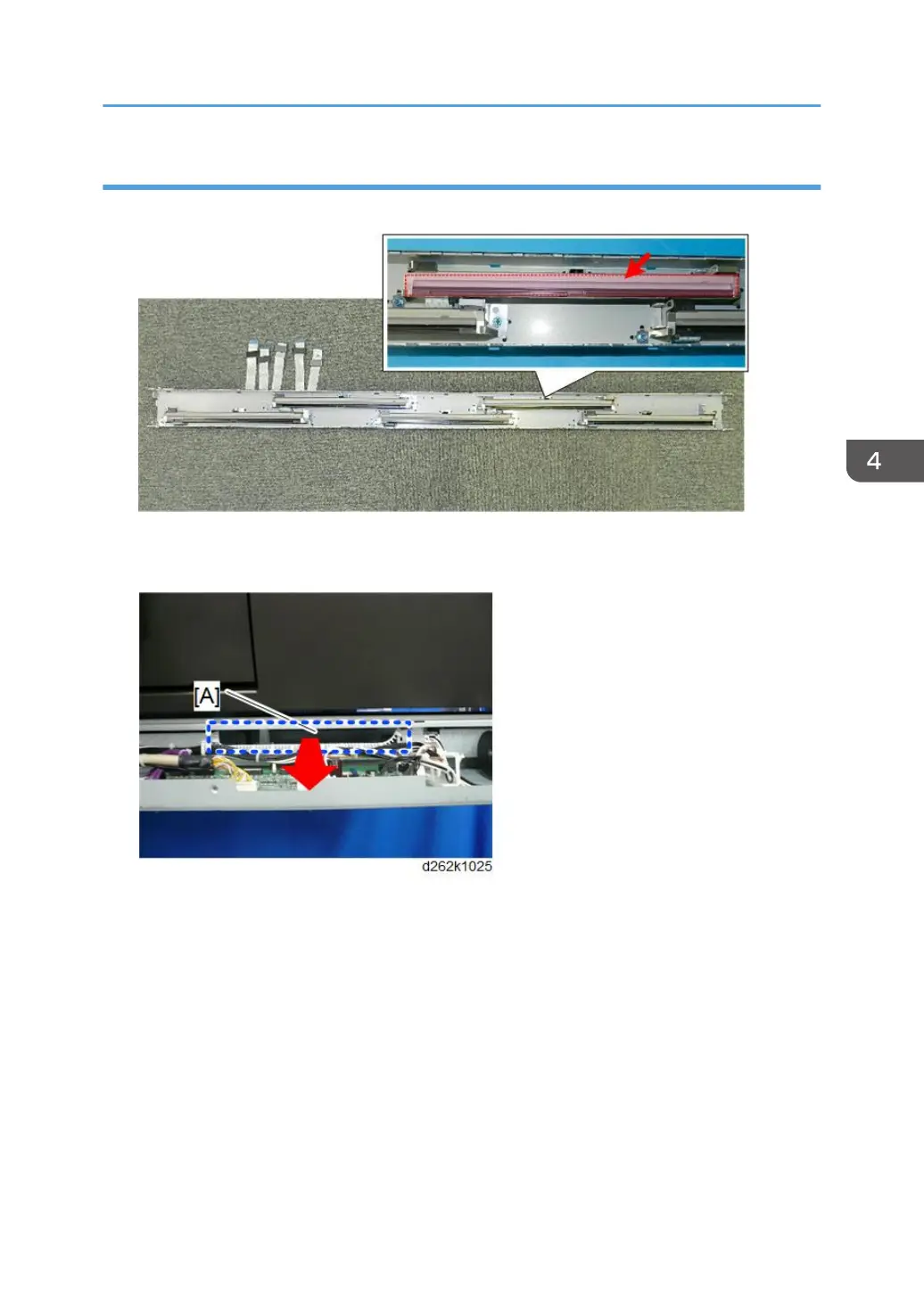

1. Never touch the CIS lenses.
2. Clean away smudges or dirt with lens paper.
3. At the rear, locate the slot rimmed with white plastic [A]. This is where the FFCs will be re-inserted.
4. Insert the CIS units to the slits on the left [A] and right [B].
Scanner
303

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
