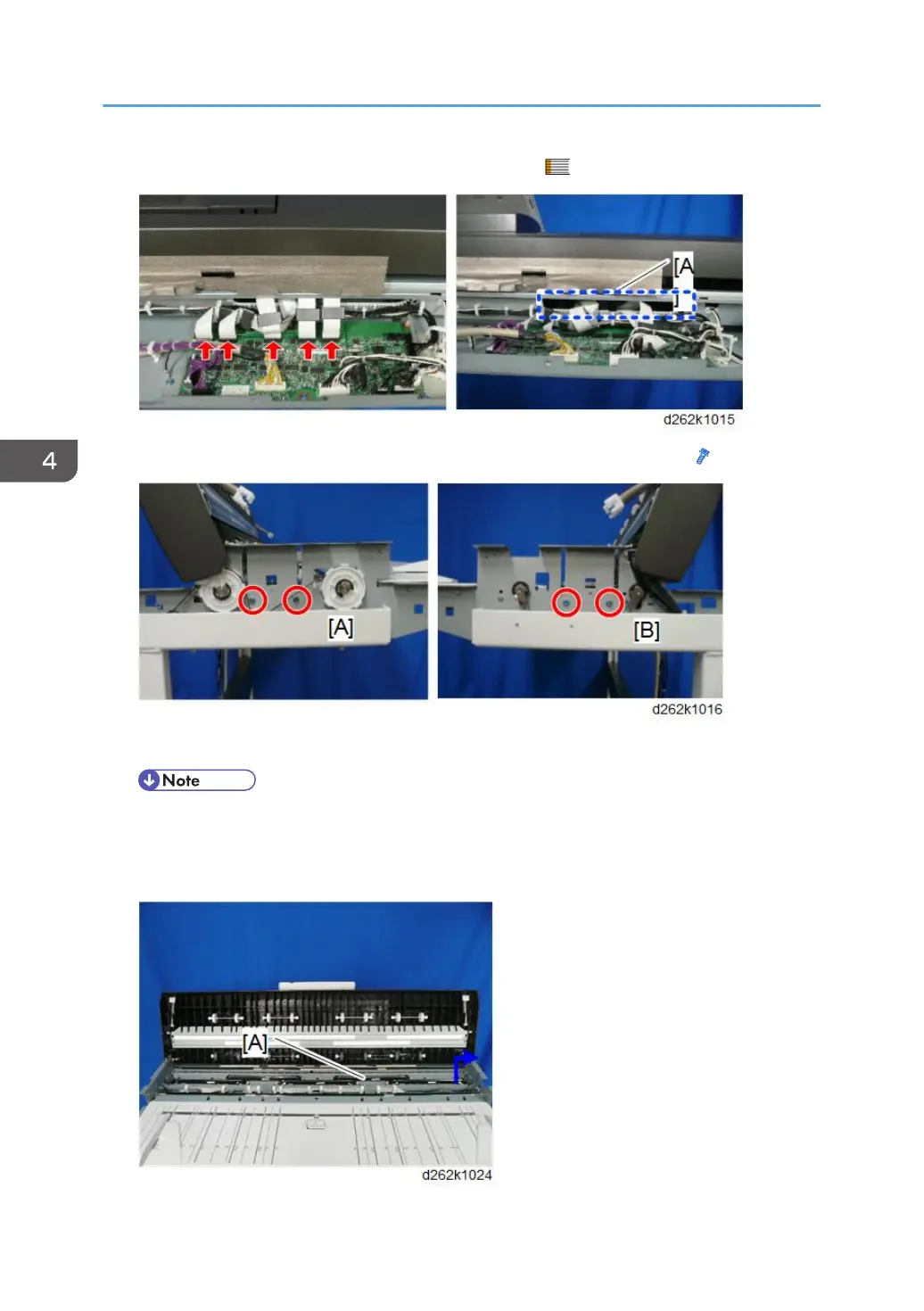

5. Release the FFCs, and push them in the opening [A]. ( x5)
6. Remove the screws from the left [A] and right [B] sides of the CIS frame. ( x4)
7. Remove the CIS unit [A].
• Lift the right side of the CIS unit and move it to the right to remove.
• Never touch the CIS lenses.
• Handle the CIS unit carefully to protect it from sudden shock and vibration.
4. Replacement and Adjustment
302
