Wiring the Scanner Cable

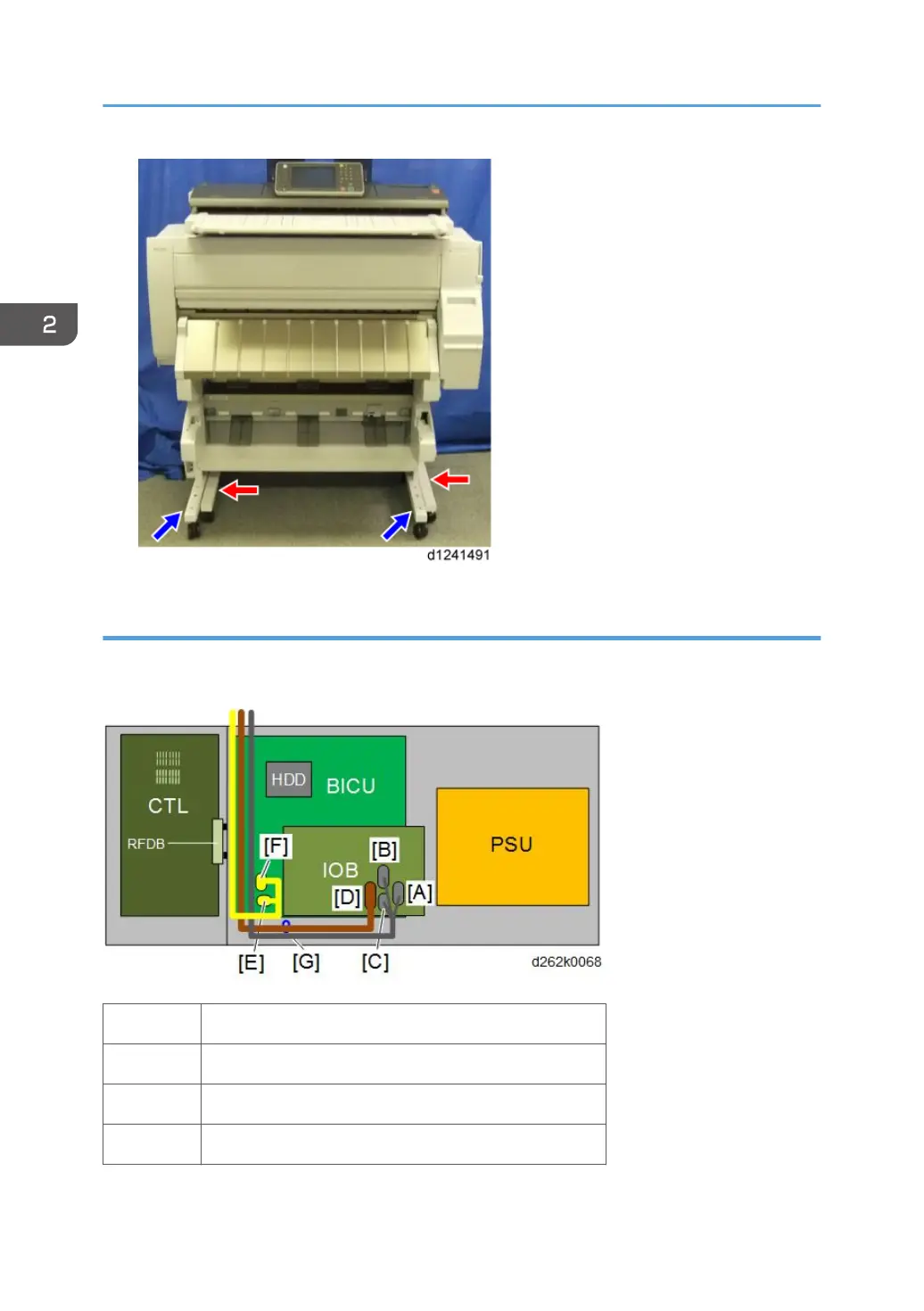

Connect the scanner cable of the scanner unit to the machine. The figure below shows the wiring

example.

[A] IOB CN258

[B] IOB CN259

[C] IOB CN256

[D] IOB CN257
