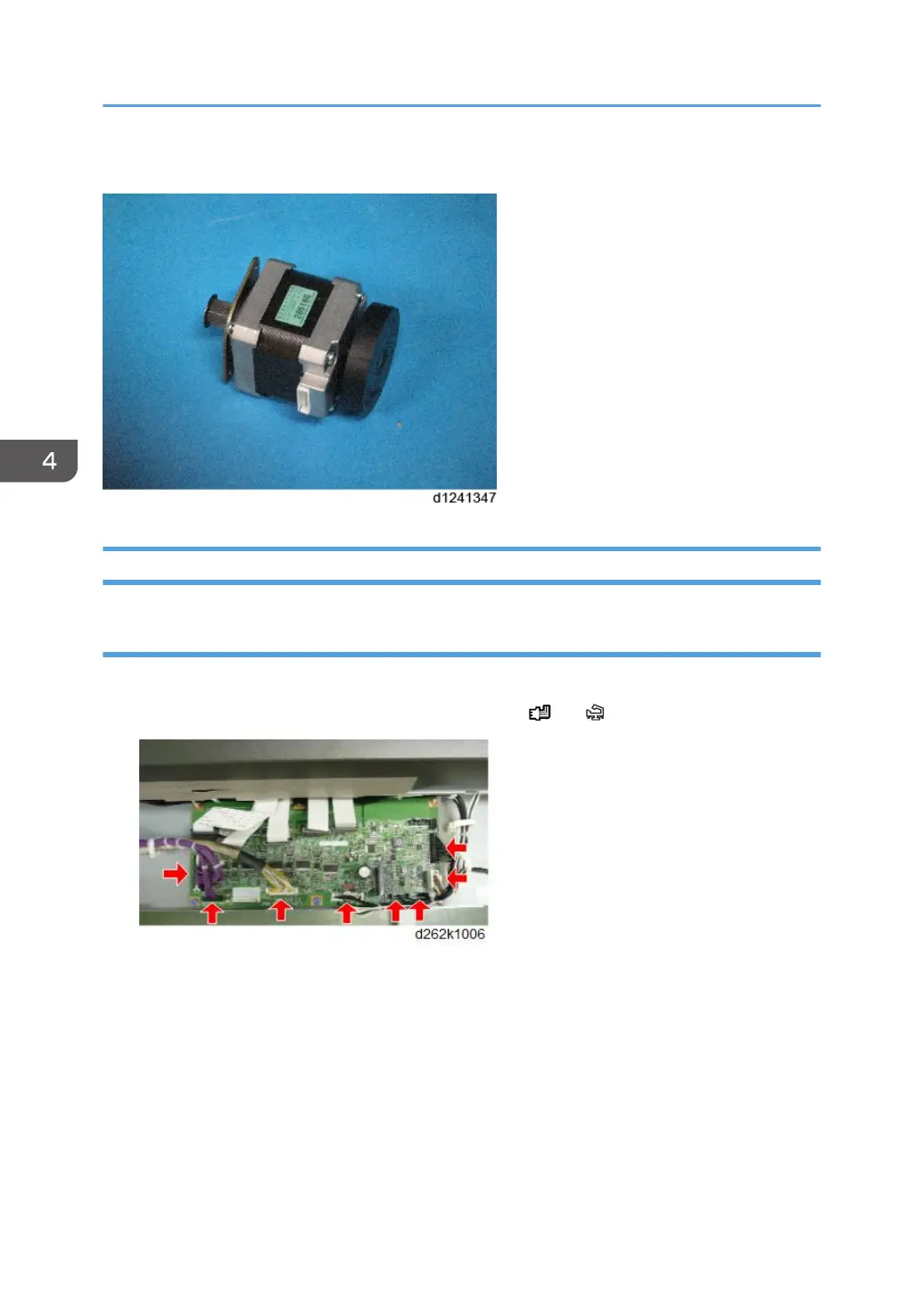

Scanner Motor

SIB (Scanner I/F Board)

Remove

1. Remove the scanner rear cover (p.260).

2. Disconnect all the connectors connected to the SIB. ( x8, x1)

4. Replacement and Adjustment

292
