Ricoh MP CW2201 Service Manual

• If the machine is turned on with the strip positioned as shown at [A], the movement of the
carriage unit may scratch the surface of the encoder strip.
Horizontal Motor
1. Remove the top cover (p.245).
2. Remove the left rear cover (p.248).

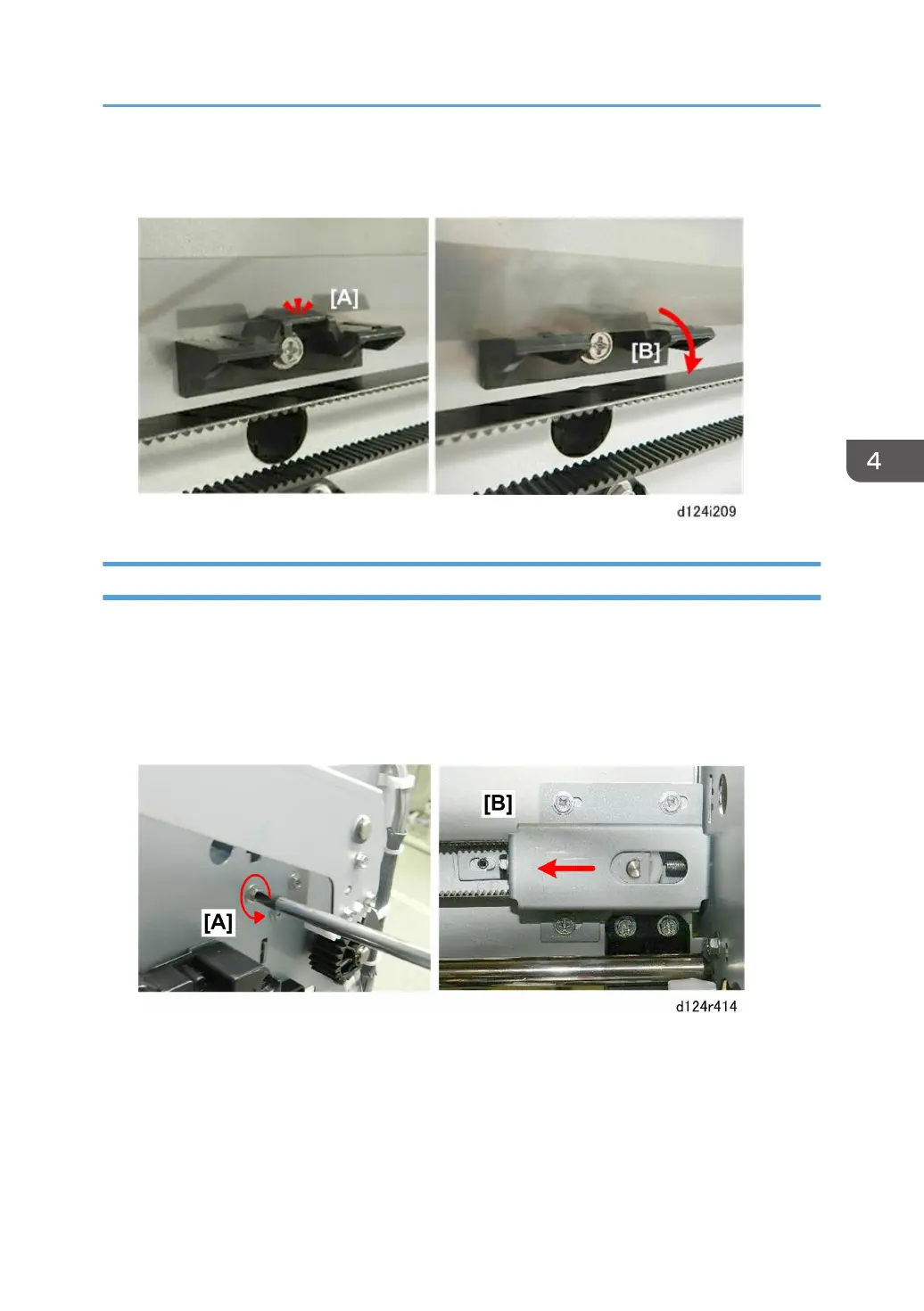

3. On the right of the main unit, loosen the tension screw [A] hidden behind the paper
holding lever until the horizontal timing belt is loosened with the timing belt pressure
bracket [B] moving to the left.
Main Scan
389

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
