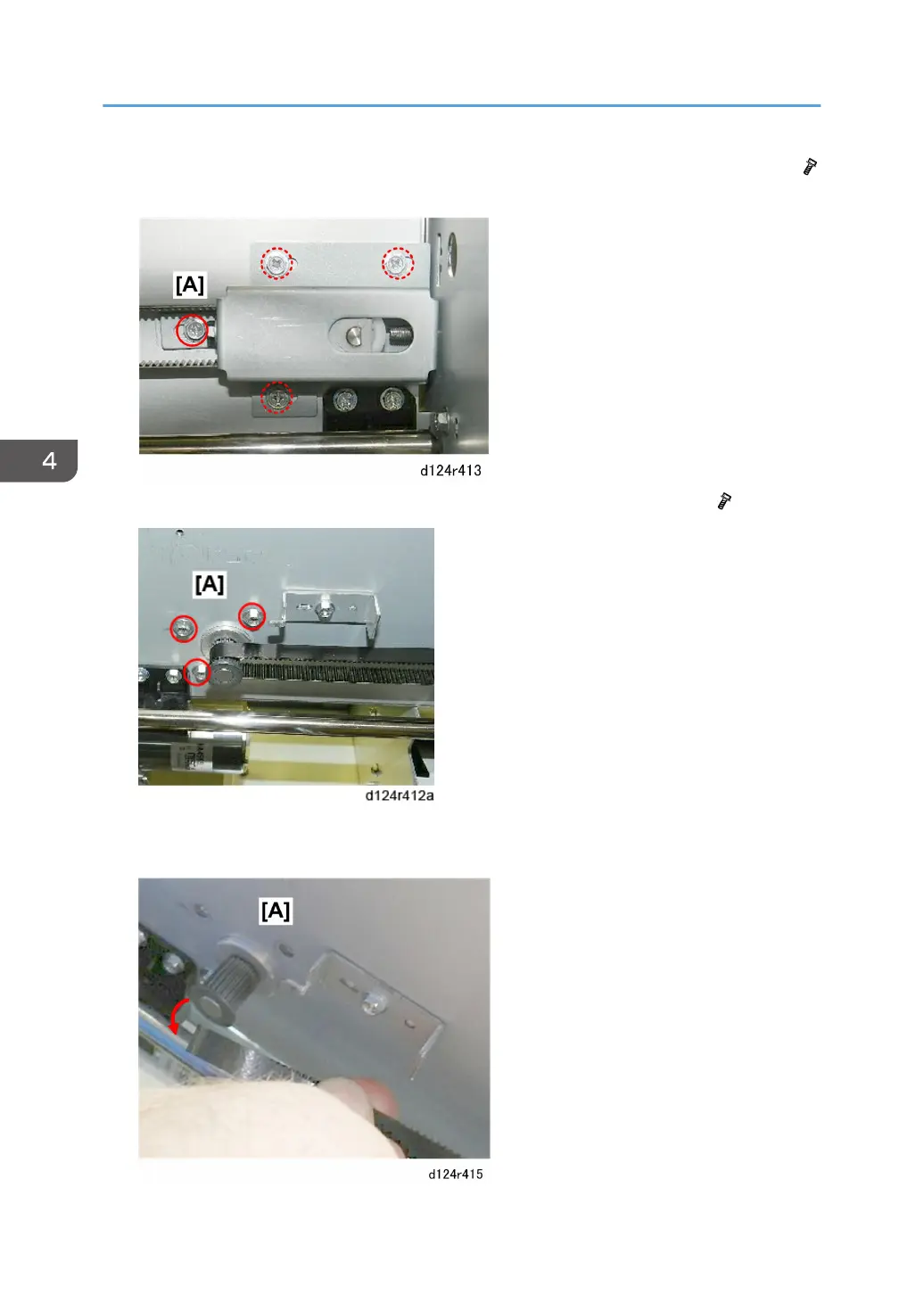

4. On the right of the main unit, remove the screw [A] and loosen the other three screws. (
x1)
5. On the left of the main unit, remove the screws of the horizontal motor [A]. ( x3)
6. On the left of the main unit, remove the horizontal timing belt from the motor drive gear
[A].
4. Replacement and Adjustment
390
