Ricoh MP CW2201 Service Manual

Fuses
Scanner Unit
Operation Panel
Refer to Smart Operation Panel Manual.

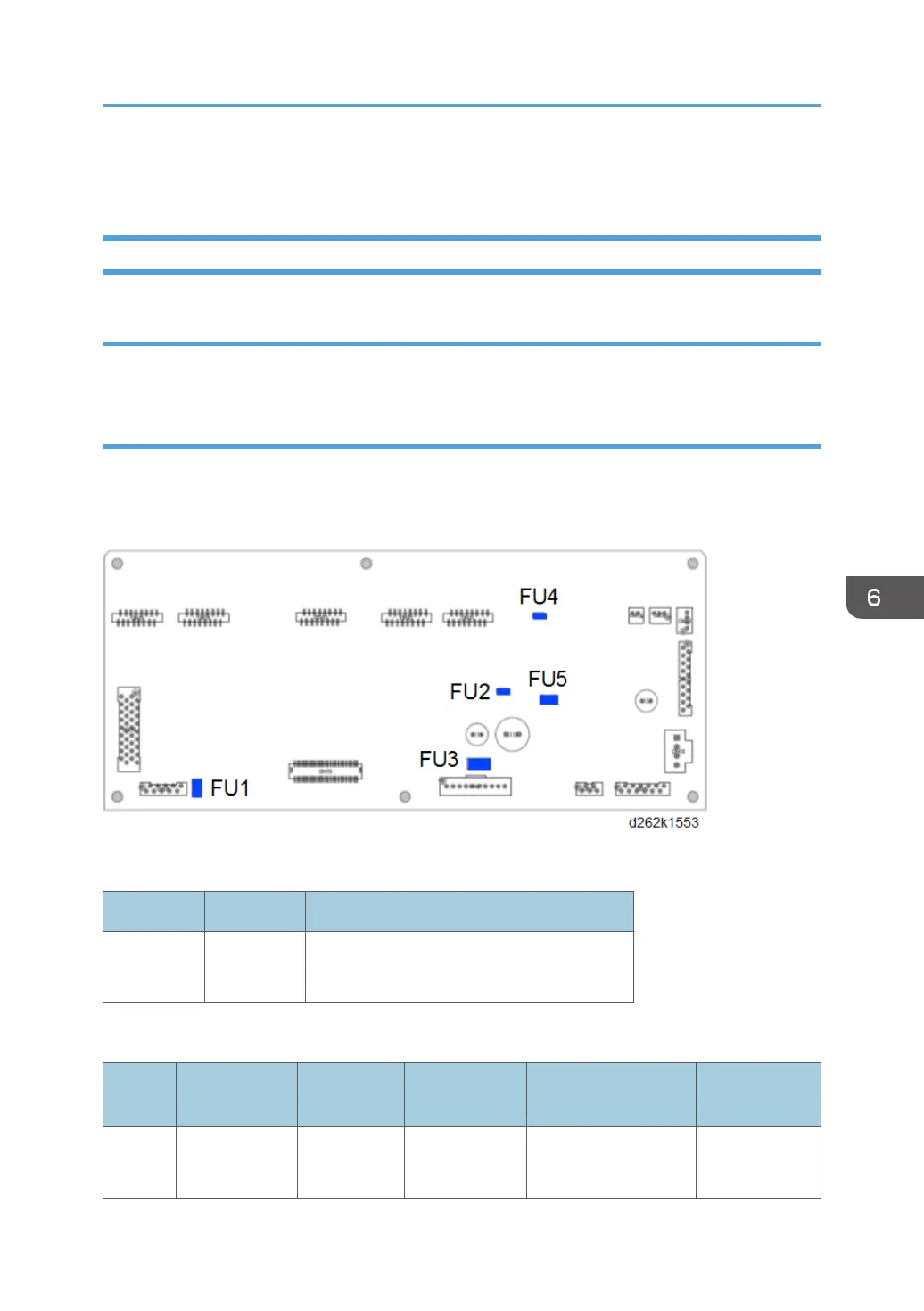

SIB (Scanner I/F Board)
The SIB is placed at the left back of the scanner unit, controls the CIS, scanner motor, and sensors on the
scanner motor, and relays the signals.
The CIS reads image data, which are then converted from analog to digital and sent to the BiCU.
LED Status
LED Color LED Status
LED1 Green
Power ON: Lit
Power OFF / Sleep mode: not lit
Fuse
Name
Output
terminal
Capacity Voltage Type Part No.
FU1
CN436
CN438
1.1 A
8 V DC
5 V
Sensors for scanner
unit
11090007
Fuses
759

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
