Ricoh MP CW2201 Service Manual

Before You Begin

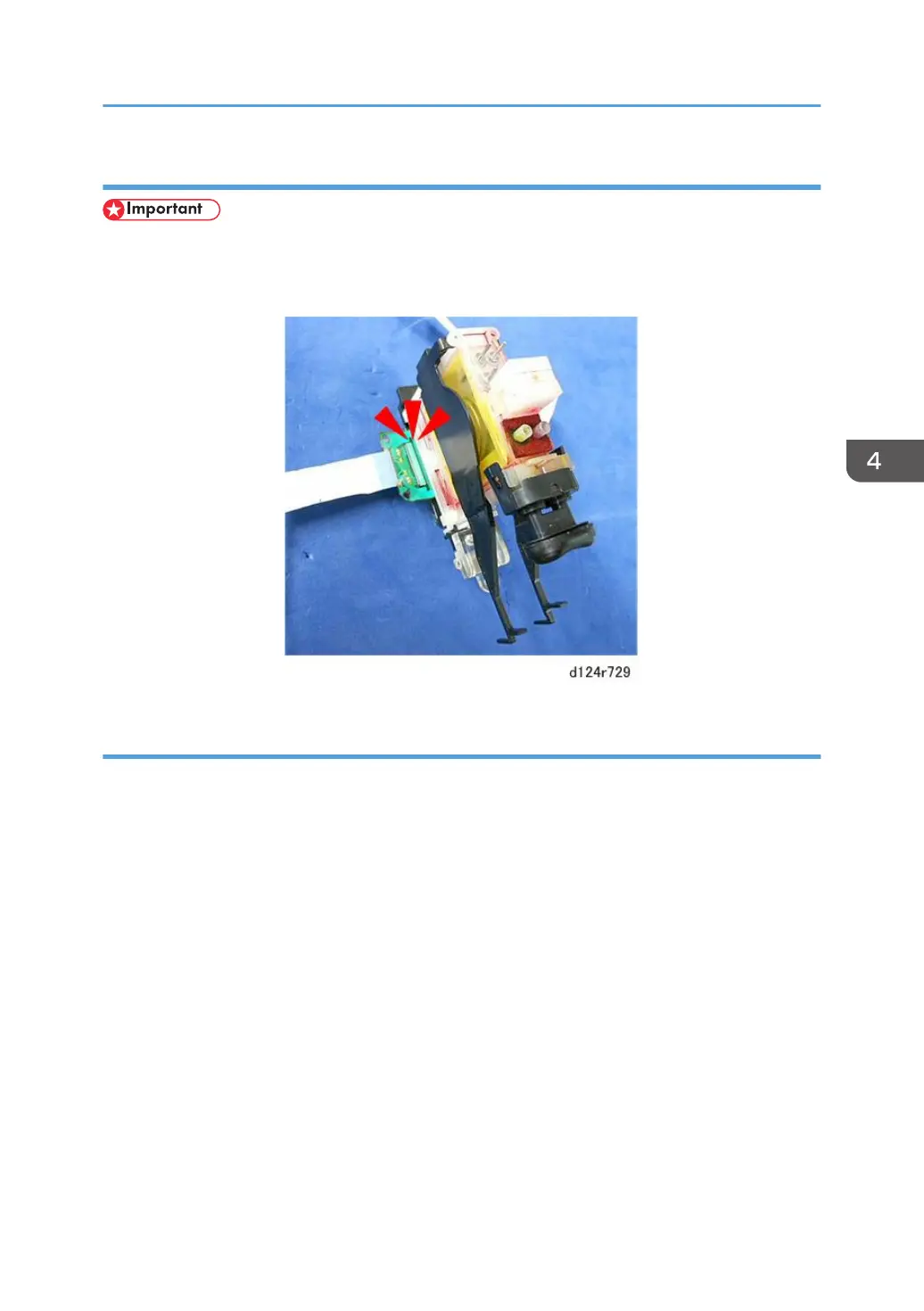

• Always follow instructions and work carefully to avoid spilling ink from the ink tubes and the tops of
the ink sub tanks. If ink spills onto a printed circuit board at the base of the FFC, the print head unit
will become unusable and require replacement.
Ink Supply Unit Replacement
1. Do SP2090-1 to clear the NVRAM setting for the ink supply unit.
2. Move the Carriage Unit with SP2102-4 (p.267).
3. Turn the machine off and disconnect the power cord from the power source.
4. Separate the Main Unit from the Scanner Unit (p.274).
5. Remove the top cover (p.245).
Ink Supply
505
