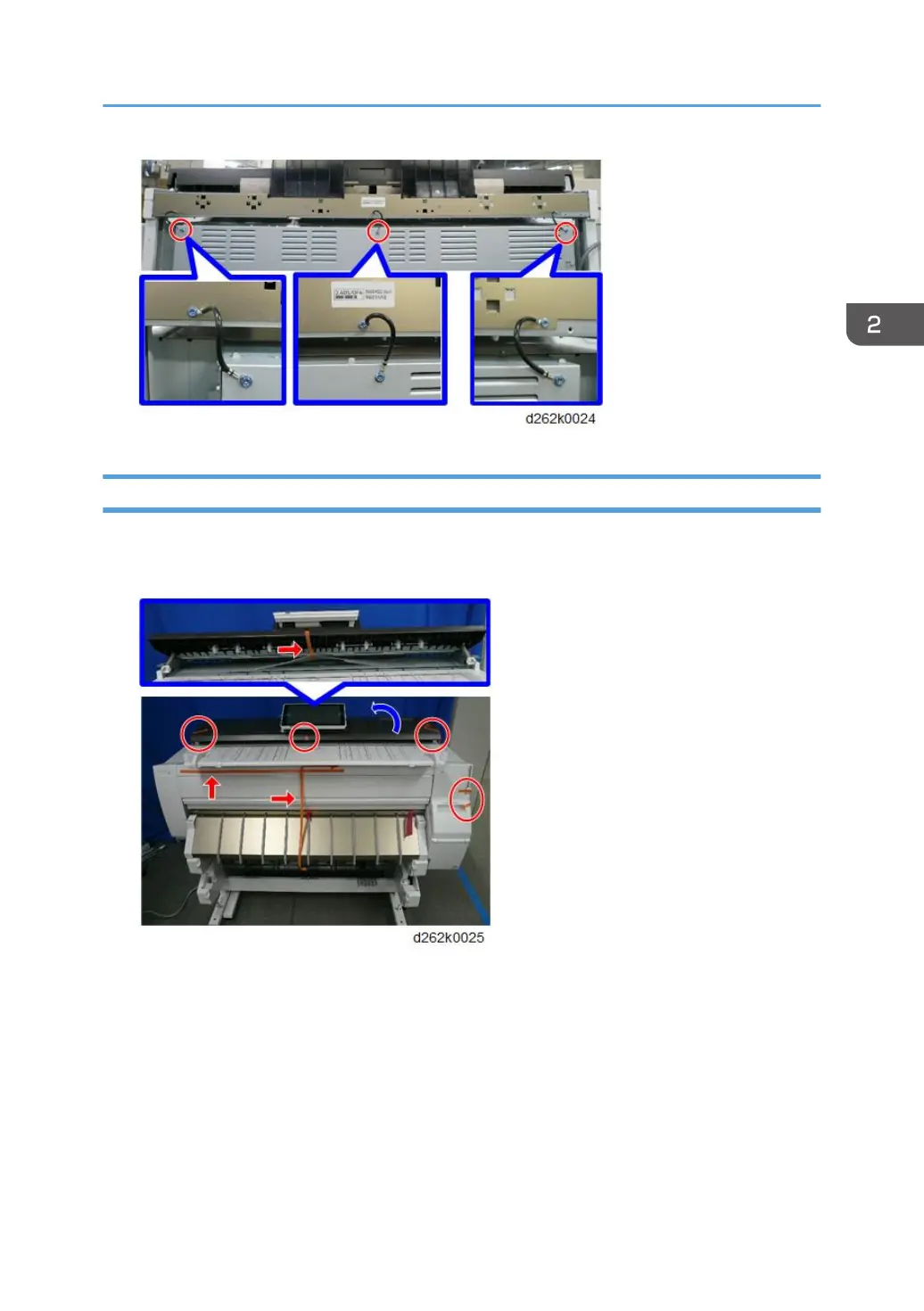

Removing Tapes and Shipping Materials

1. Open the scanner unit and remove the vinyl and filament tape.

2. Remove all the external tape and other materials attached to the machine.

3. Lift the front cover, and remove the filament tape.

Main Machine Installation

113
