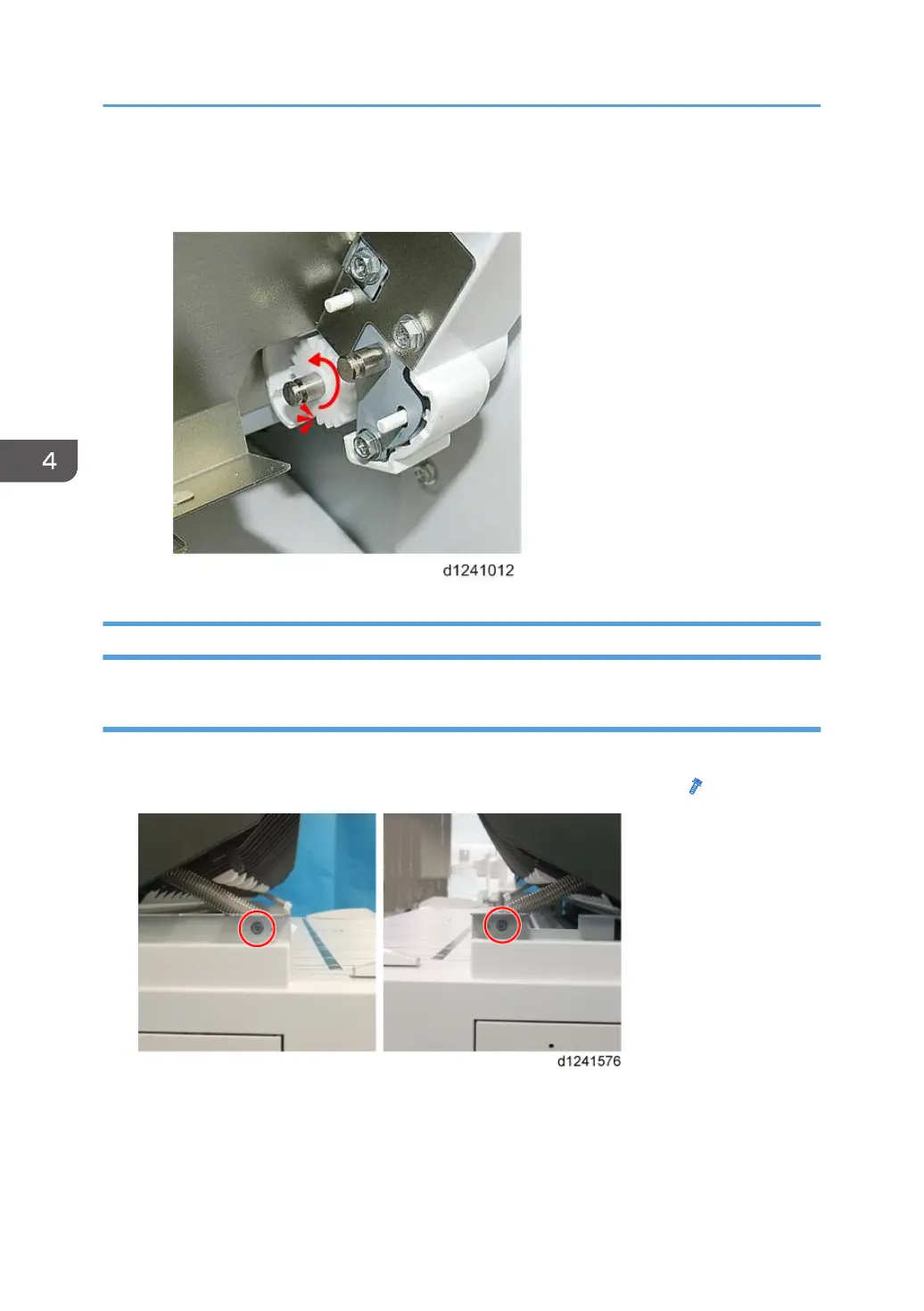

3. The tip of the shaft should be visible as shown above. If the gear is not inserted far
enough, you will not be able to re-attach the cover.
Scanner Unit
Raise the Scanner Unit Fully
1. Open the top of scanner unit.
2. Remove the screws on the left and right bases of the scanner unit arms. ( x2)
4. Replacement and Adjustment
254
