Ricoh MP CW2201 Service Manual

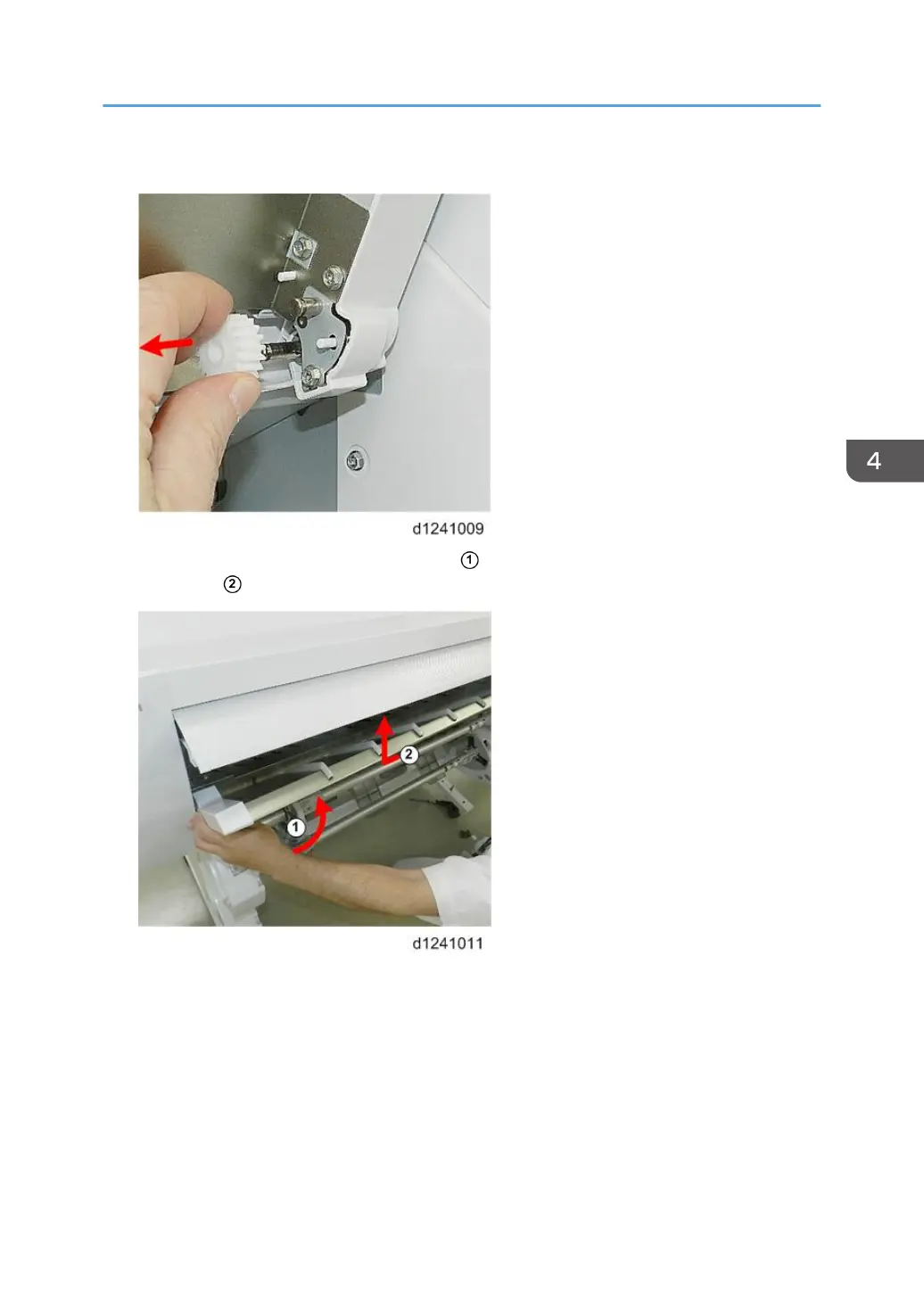

4. Remove the gear.
5. Raise the guide to the angle shown above , shift it slightly to the left, and then lift it
straight up , and then remove it.
Reinstallation
1. When you set the gear, turn it until you feel the coupling on the back of the gear
engage with the shaft pin.
2. Push in on the gear slightly so that it snaps into place.
Common Procedures
253

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
