Ricoh MP CW2201 Service Manual

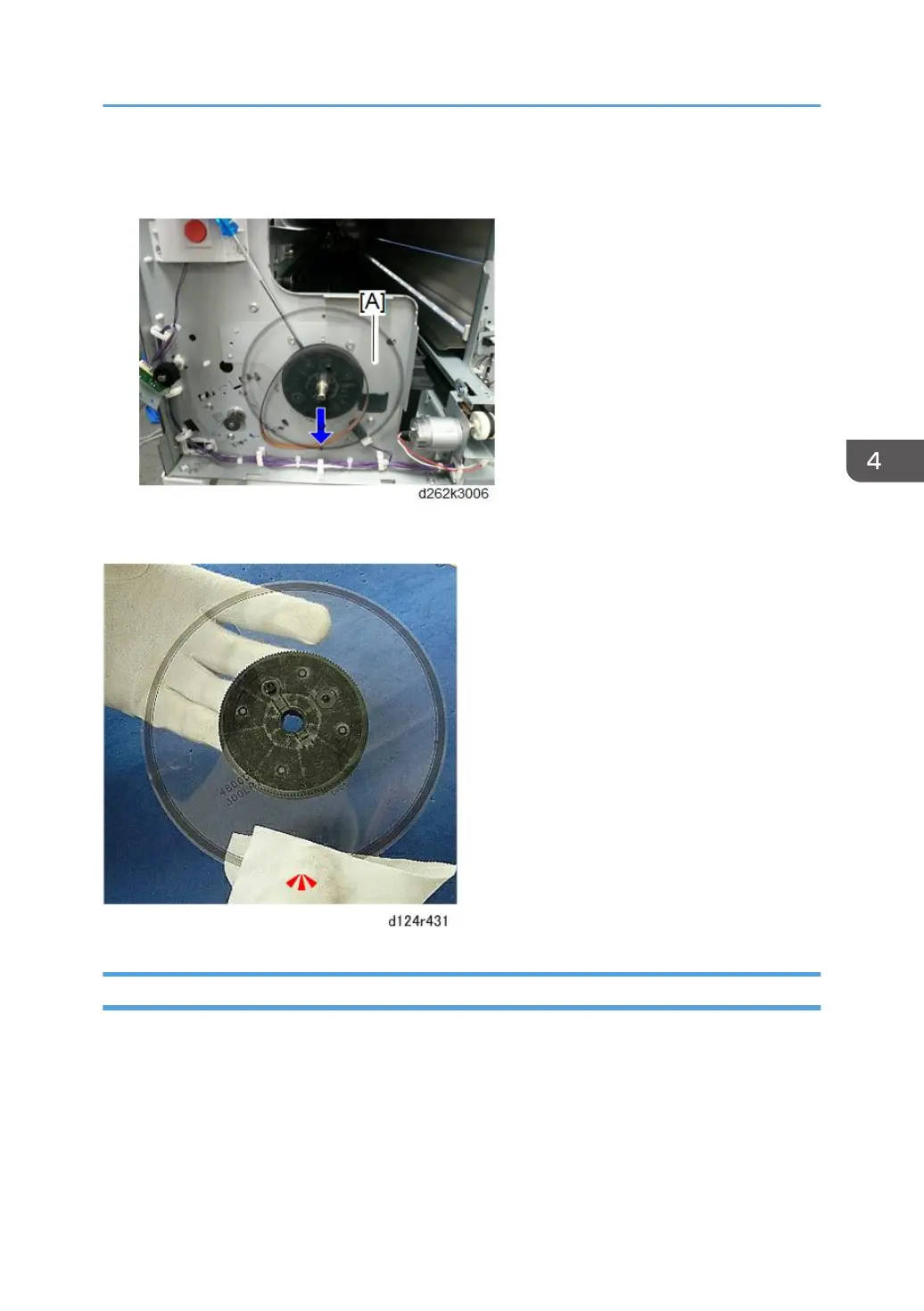

5. Use the head of a small screwdriver to apply slight pressure to the back of the wheel [A],
and then remove the wheel with the timing belt.
Vertical Encoder Wheel
Vertical Encoder HP Sensor
Preparation
Remove:
• Left cover (p.234)
• Vertical encoder sensor (p.393)
• Vertical encoder wheel (p.394)
Sub Scan
397

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
