Ricoh MP CW2201 Service Manual

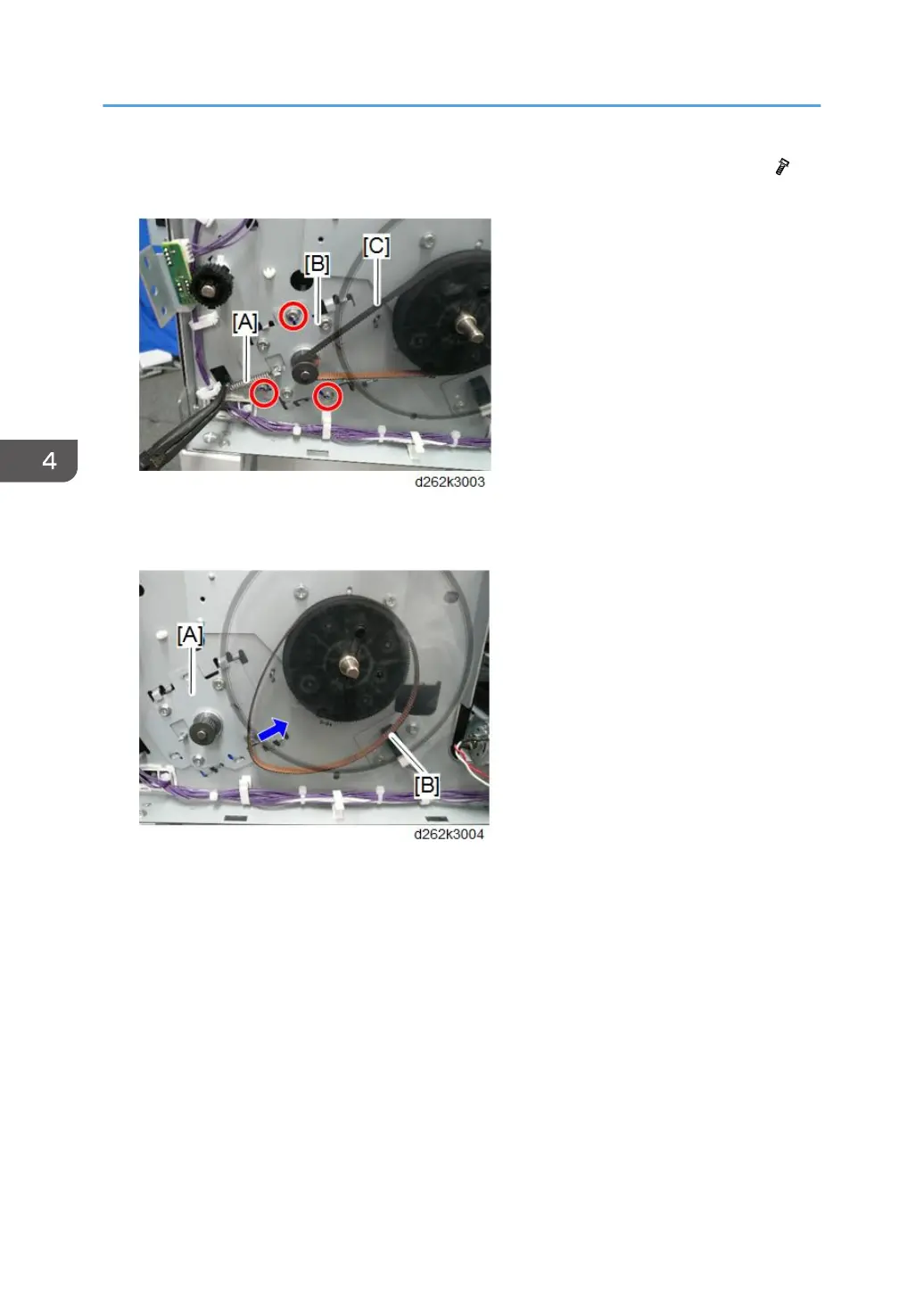

3. Remove the screws on the vertical motor bracket [B] and loosen the timing belt [C] (
x3).
4. Push the bracket [A] to the right, and then separate the timing belt [B] from the motor
drive gear.
4. Replacement and Adjustment
396

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
