Ricoh MP CW2201 Service Manual

Right Rear Cover.
Remove

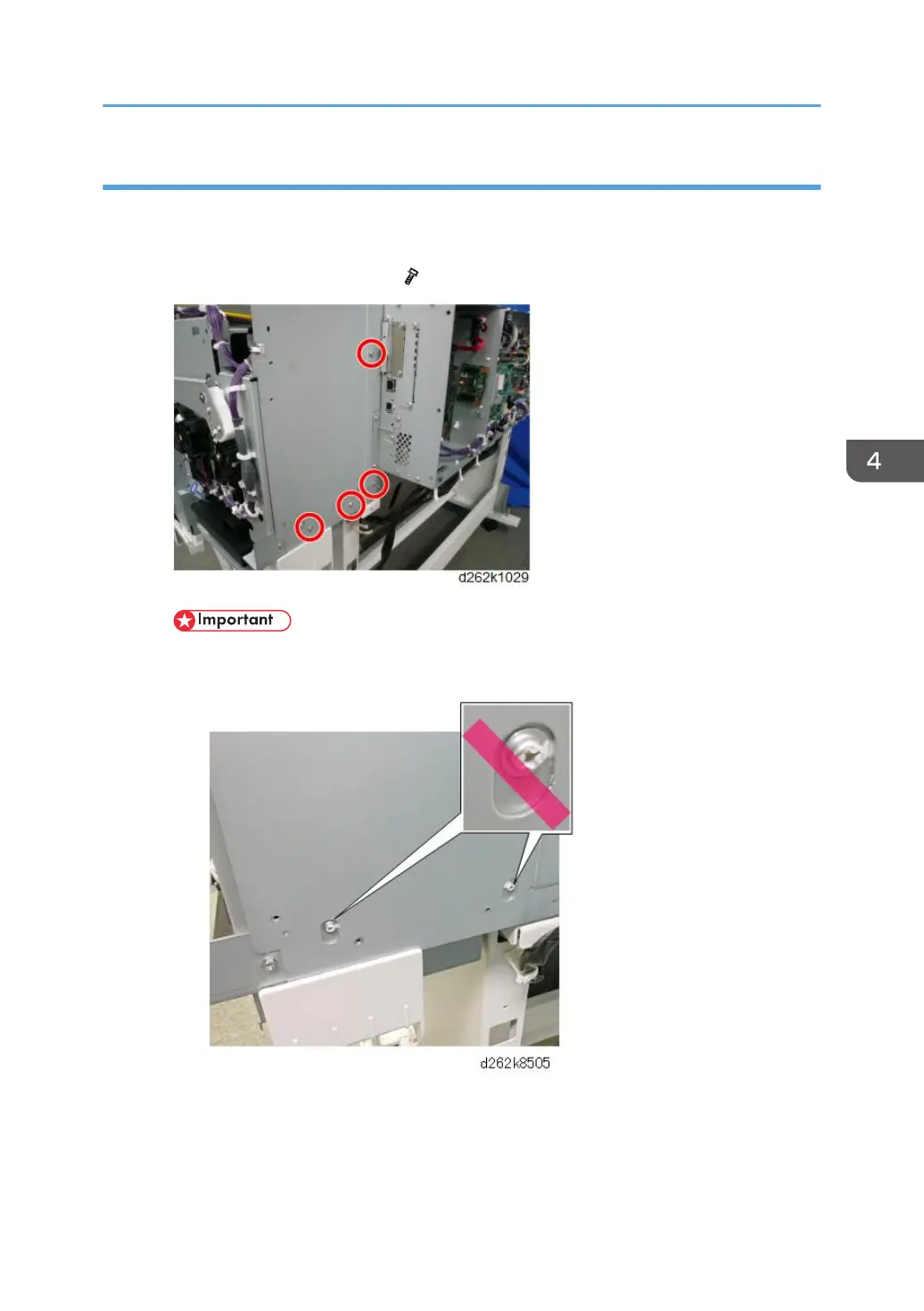

1. Remove the top cover (p.245).
2. Remove the right rear cover. ( x4)
• Never loosen nor remove the two screws in the slots at the lower part of the right rear
cover.
Precaution
• Hook the right rear cover to the cutout of the frame. [A]
• Insert the bottom of the right rear cover inside the plastic plate of the frame (handle of the
main unit). [B]
Common Procedures
247
