Ricoh MP CW2201 Service Manual

5. Turn on the main power switch of the machine.

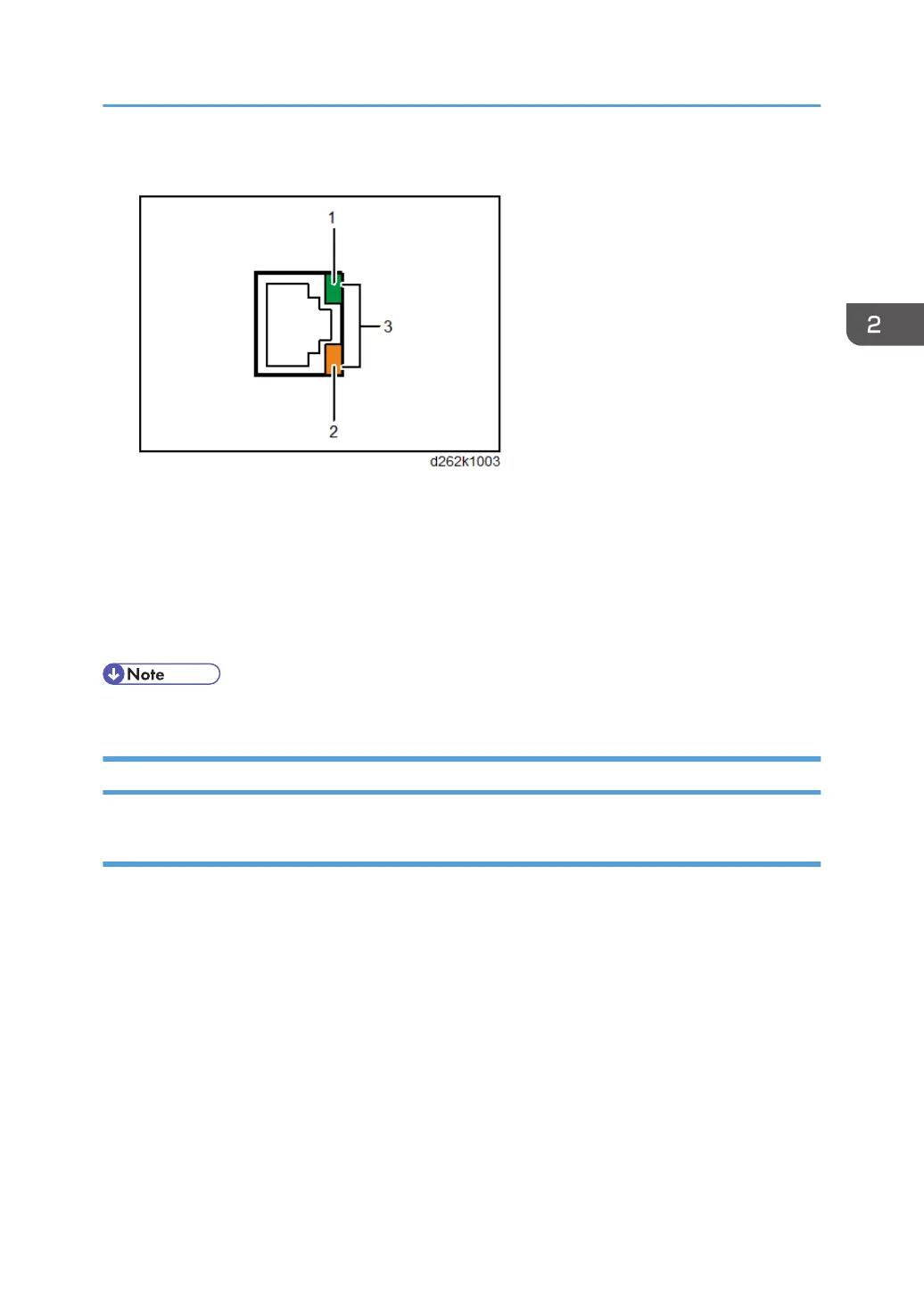

1. Indicator (green)
When 10BASE-T is operating, the LED is lit green.
2. Indicator (orange)
When 100BASE-TX is operating, the LED is lit orange.
3. Indicators (both orange and green)
When 1000BASE-T is operating, both LEDs are lit.
• The Gigabit Ethernet interface LED is not lit during power saving.
Check Printing
Nozzle Check Pattern
1. Touch [Home] at the bottom of the screen in the center.
2. Flick the screen to the left, and then touch the User Tools icon.
3. Touch [Machine Features].
4. Touch [Maintenance].
5. Touch [Print Nozzle Check Pattern].
Main Machine Installation
137

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
