Ricoh MP CW2201 Service Manual

Jam Code Tables
Overview
When a jam occurs:
• The jam indicator lights.
• Dynamic graphic messages on the display panel show the location of the jam and instructions
about how to correct the problem.

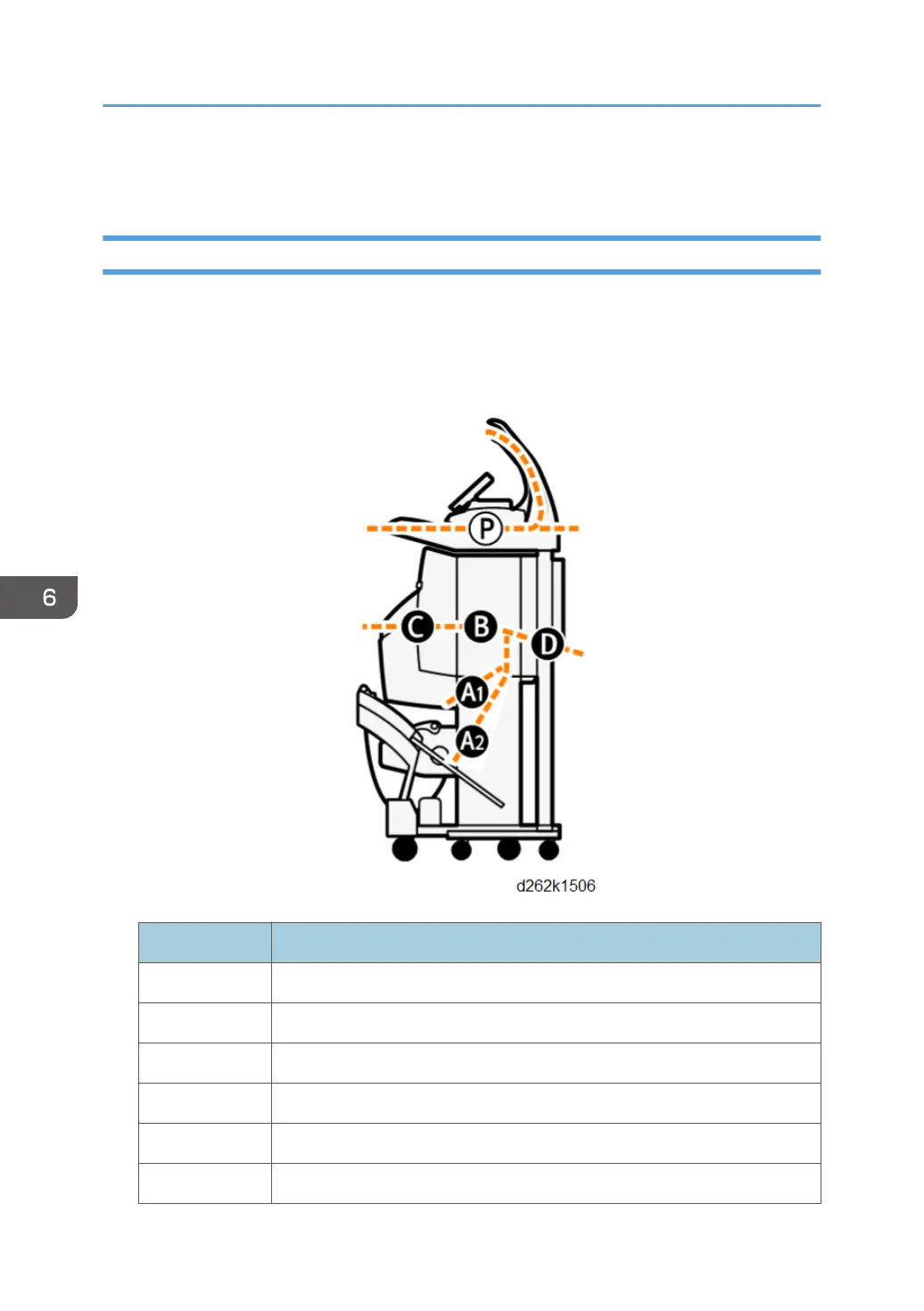

Code Location
0 to 8 Scanner Jams
A1 RF 1: Roll Unit 1 (Standard)
A2 RF 2: Roll Unit 2 (Option)
B Registration standby position
C Paper exit (main machine)
D Bypass paper feed path
6. Troubleshooting
738

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
