Ricoh MP CW2201 Service Manual

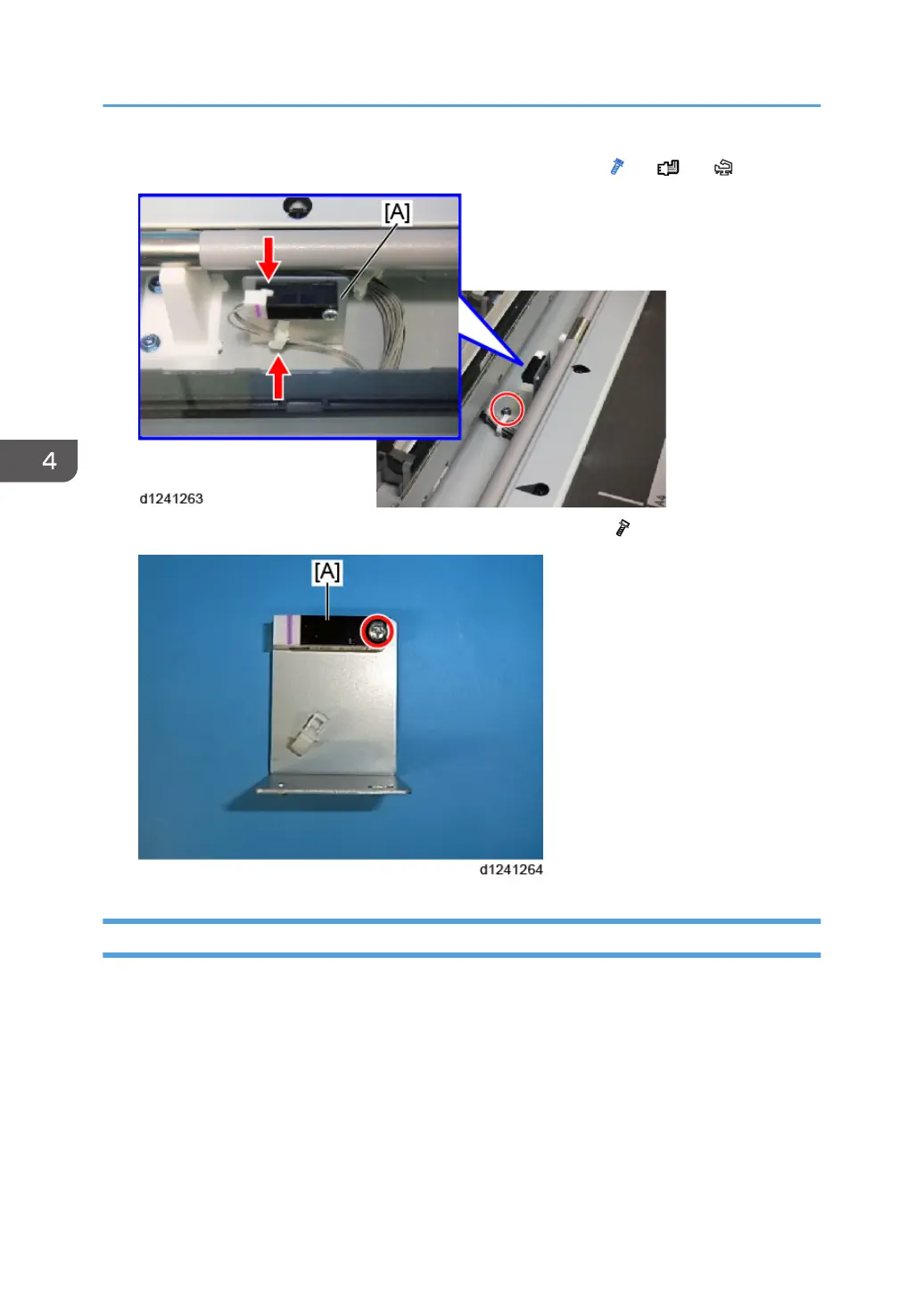

3. Remove the original registration sensor with the bracket [A]. ( x1, x1, x1)
4. Separate the bracket and the original registration sensor [A]. ( x1)
Scanner Motor
1. Remove the scanner rear cover (p.260).
2. Remove the scanner left cover and scanner right cover (p.260).
3. Raise the left side of the scanner unit (p.262).
4. Replacement and Adjustment
290
