Name Output terminal Capacity Voltage Type Part No.

FU11 CN911-3

T5A

250V

5.1V BiCU ‐

FU12

CN912-5

CN912-6

T10A

250V

24V IOB ‐

FU13 CN912-7

T2.5A

250V

24V IOB ‐

FU14 CN912-8

T6.3A

250V

24V IOB ‐

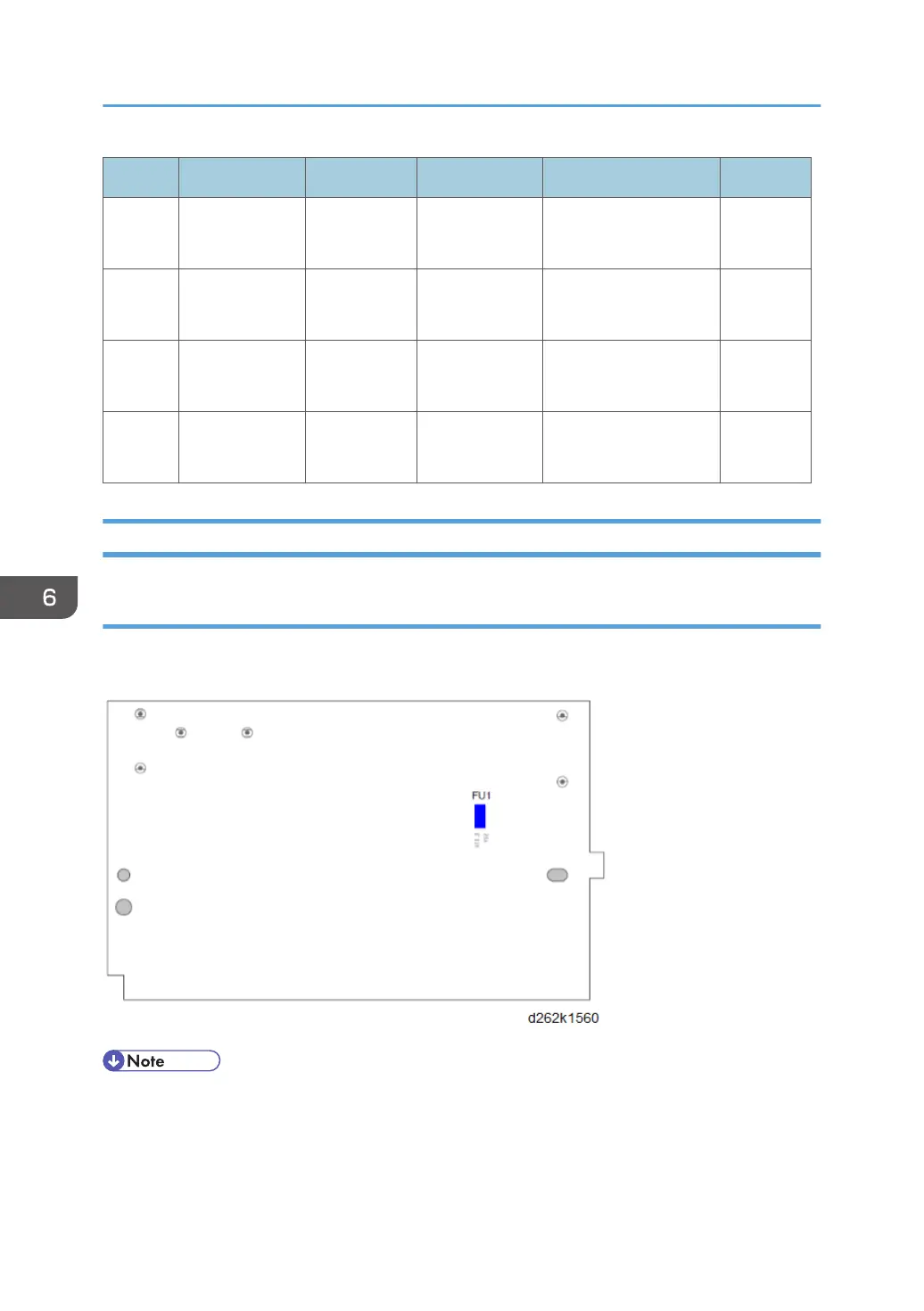

Carriage Unit

HRB

The HRB behind the print heads relays signals to the control board from the horizontal encoder sensor,

DRESS sensor, and thermistors.

• FU1 is located on the back surface of the board.
